Theory of PCA

Authors

Will Gammerdinger

Noor Sohail

Zhu Zhuo

James Billingsley

Shannan Ho Sui

Published

July 22, 2025

Approximate time: 45 minutes

Learning Objectives

Derive the covariance matrix used for Principal Components Analysis
Explain the roles of eigenvectors and eigenvalues within a Principal Components Analysis
Compare and contrast our Principal Components Analysis to the output of prcomp()

Background

Principal Components Analysis is a dimensionality-reduction method employed to stratify data by their variance. In other words, points that are more closely together on a PCA are more similar to each other, while points that are more dissimilar to each other will be further apart. As a result, you would likely expect similar cells from the same cell type to cluster near each other and apart from distinctly different cell types. In order to demonstrate how Principal Components Analysis works we are going to describe how the process works in high-dimensional data, then work through it using a two-dimensional example data set.

Consider a single-cell experiment where you have the expression value for every gene in each cell. Let’s hypothetically say that our sample has data from 25,000 genes. We could plot this 25,000-dimensional space where each dimension represents a given gene’s expression and each point represents a cell in that 25,000-dimensional space. However, that is rather unintuitive and many of those dimensions are uninteresting, so we would like to reduce the dimensionality to the axes that separate the variance the most. This is what we will be doing with a Principal Components Analysis.

From a high-level perspective, what we will be doing is:

Finding the vector in that 25,000-dimensional space that has the most variance in it.
Looking for another vector that is orthogonal (a 90° angle but in multi-dimensional space) to the first vector that explains the most of the remaining variance. We continue this process until you have exhausted all source of variantion from your dataset. However, in practice, people oftentimes stop after a few dozen.
Use these vectors to transform your original data into Principal Components space.

Setting up to calculate Eigenvalues and Eigenvectors

Let’s open a new R script and save it as PCA-example.R. Next, we will be using some functions from tidyverse in the lesson, so we will need to load it:

library(tidyverse)

Creating an example data set

We are going to discuss the steps for deriving a Principal Components analysis, but in order to do it, we are going to use an example dataset. Let’s start by creating an tibble that has gene expression values for two genes from four cells.

# Create a vector for Cell IDs
cells <- c("Cell_1", "Cell_2", "Cell_3", "Cell_4")
# Create a vector to hold expression values for Gene A across all of the cells
Gene_A <- c(0, 12, 65, 23)
# Create a vector to hold expression values for Gene B across all of the cells
Gene_B <- c(4, 30, 57, 18)

# Create a tibble to hold the cell names and expression values
expression_tibble <- tibble(cells, Gene_A, Gene_B)

# View the expression tibble
expression_tibble

# A tibble: 4 × 3
  cells  Gene_A Gene_B
  <chr>   <dbl>  <dbl>
1 Cell_1      0      4
2 Cell_2     12     30
3 Cell_3     65     57
4 Cell_4     23     18

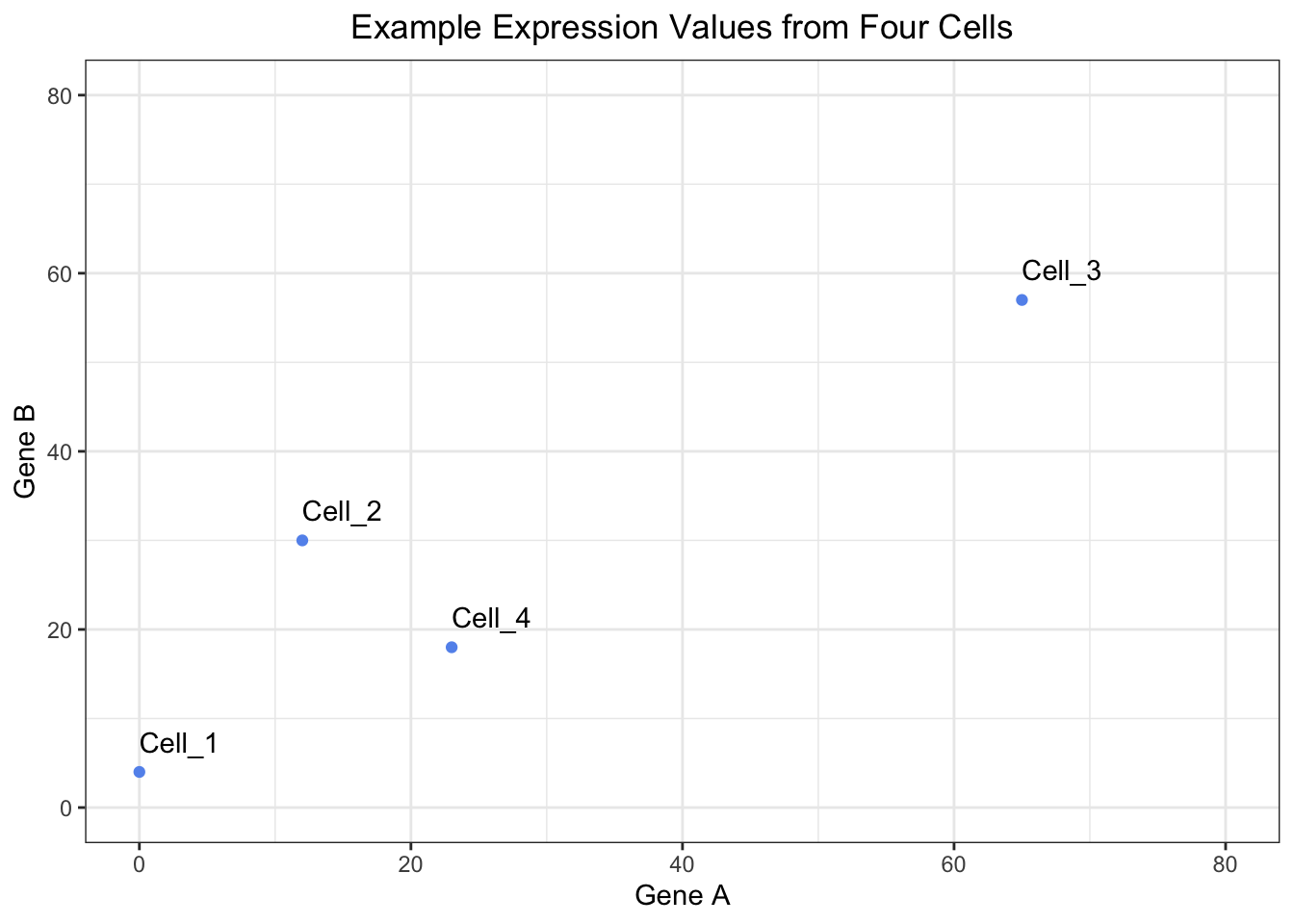

Let’s get an idea of what our data looks like by plotting it:

# Create a plot to view the raw expression data
ggplot(expression_tibble, aes(x = Gene_A, y = Gene_B, label = cells)) +
  geom_point(color = "cornflowerblue") +
  geom_text(hjust = 0, vjust = -1) +
  xlim(0, 80) +
  ylim(0, 80) +
  theme_bw() +
  xlab("Gene A") +
  ylab("Gene B") +
  ggtitle("Example Expression Values from Four Cells") +
  theme(plot.title = element_text(hjust = 0.5))

As a reminder, if were were to consider our data set, it would have 14065 genes and 29629 cells, so this is a simplified example.

Re-centering the dataset

The first step of PCA is to find the central spot among all of our datapoints (cells) and use that as the origin to re-center the data. In order to do this, we need to do two steps:

1. Find the center of the data

We can find the center of the data by taking the average gene expression across each gene (dimension).

# Determine the center of the data by:
# Finding the average expression of gene A
Gene_A_mean <- mean(expression_tibble$Gene_A)
# Finding the average expression of gene B
Gene_B_mean <- mean(expression_tibble$Gene_B)

# Create a vector to hold the center of the data
center_of_data <- c(Gene_A_mean, Gene_B_mean)
# Assign names to the components of the vector
names(center_of_data) <- c("Gene_A", "Gene_B")
# Print out the center_of_data vector
center_of_data

Gene_A Gene_B
 25.00  27.25

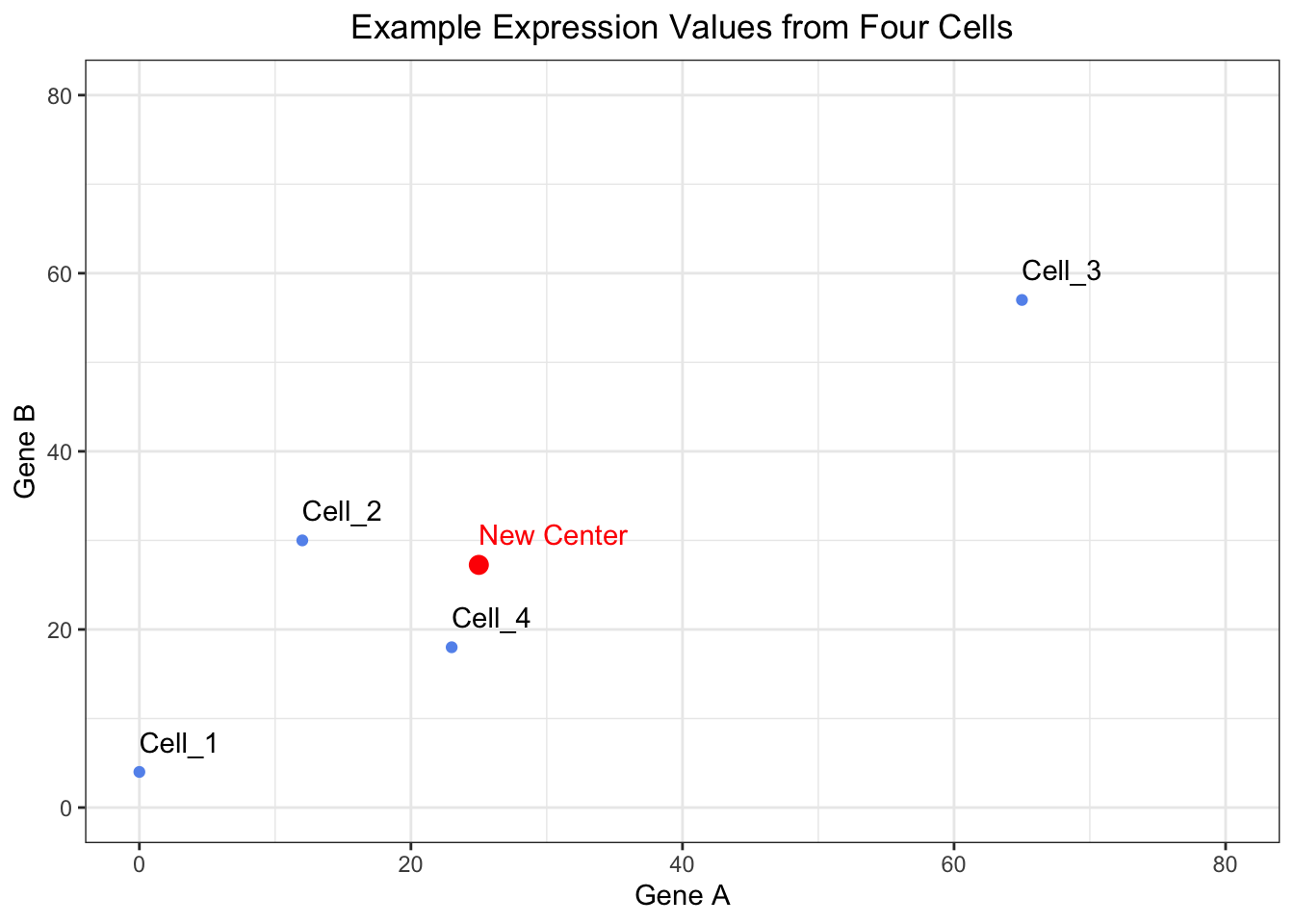

The new center of the data will be where ( 25, 27.25 ) currently is. We can visualize this center and inspect that this is does in fact appear to be roughly in the middle of the data.

# View where the center of the data is located
ggplot(expression_tibble, aes(x = Gene_A, y = Gene_B, label = cells)) +
  geom_point(color = "cornflowerblue") +
    annotate("point", x = Gene_A_mean, y = Gene_B_mean, color = "red", size = 3) +
  geom_text(hjust = 0, vjust = -1) +
  annotate("text", x = Gene_A_mean, y = Gene_B_mean, color = "red", label="New Center", hjust = 0, vjust = -1) +
  xlim(0, 80) +
  ylim(0, 80) +
  theme_bw() +
  xlab("Gene A") +
  ylab("Gene B") +
  ggtitle("Example Expression Values from Four Cells") +
  theme(plot.title = element_text(hjust = 0.5))

2. Translate the points from their raw expression coordinates to coordinates centered around the center of the data

Next, we need to shift the points so that the center of the data corresponds to the origin. We can do this by subtracting the mean value for each gene from the raw values.

# Shift the data points so that they data is centered on the origin
recentered_expression_tibble <- expression_tibble %>%
  mutate(
    Gene_A = Gene_A - Gene_A_mean,
    Gene_B = Gene_B - Gene_B_mean
  )

# Print out the re-centered data
recentered_expression_tibble

# A tibble: 4 × 3
  cells  Gene_A Gene_B
  <chr>   <dbl>  <dbl>
1 Cell_1    -25 -23.2
2 Cell_2    -13   2.75
3 Cell_3     40  29.8
4 Cell_4     -2  -9.25

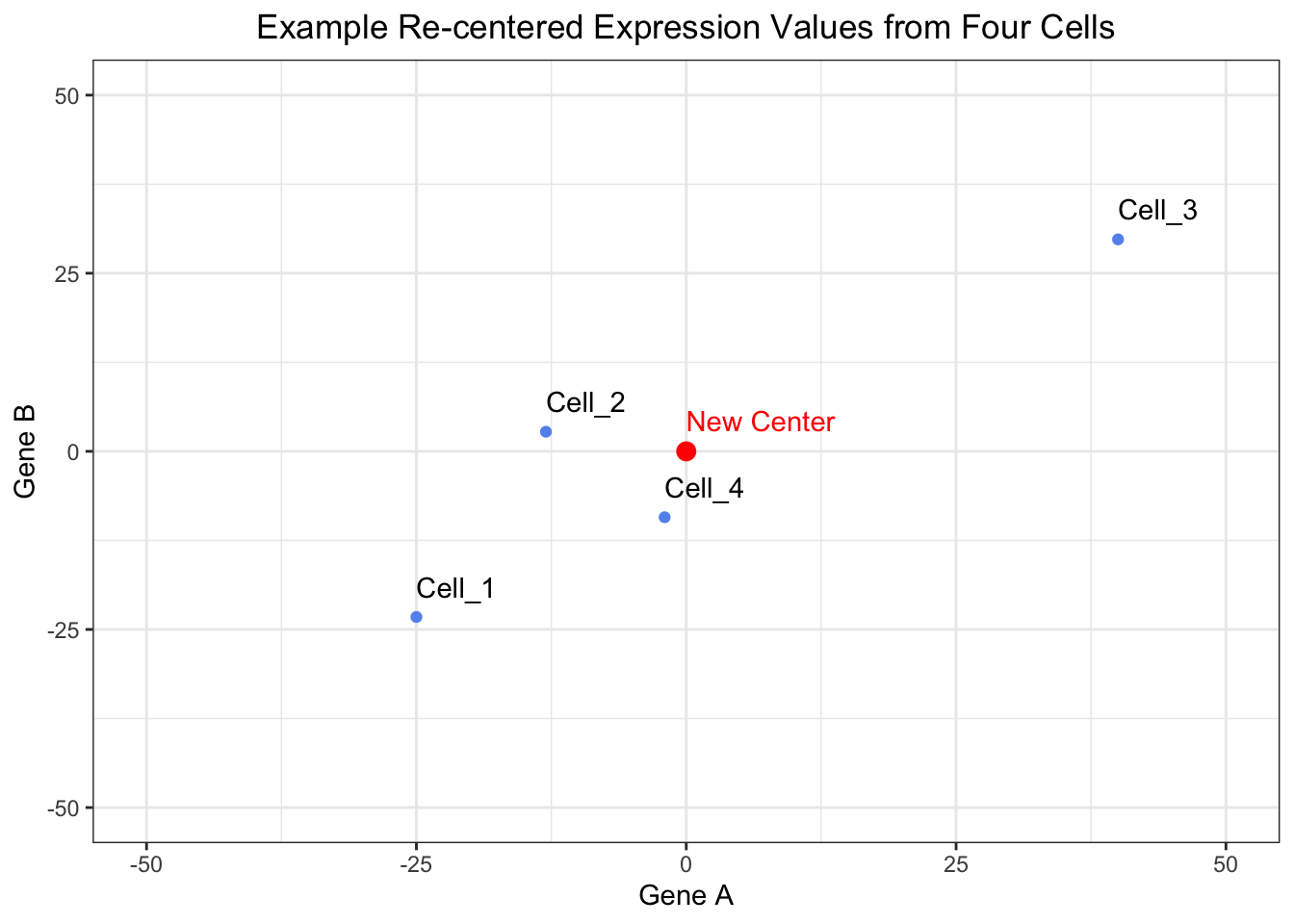

As with any data analysis, it is always a good idea to visualize your data to ensure that it appears to behaving how you intended. So let’s visualize our re-centered data to ensure that the data appears centered around the origin.

# Plot the raw data after it has been shifted to have the center of the data align with the origin
ggplot(recentered_expression_tibble, aes(x = Gene_A, y = Gene_B, label = cells)) +
  geom_point(color = "cornflowerblue") +
  annotate("point", x = 0, y = 0, color = "red", size = 3) +
  geom_text(hjust = 0, vjust = -1) +
  annotate("text", x = 0, y = 0, color = "red", label="New Center", hjust = 0, vjust = -1) +
  xlim(-50, 50) +
  ylim(-50, 50) +
  theme_bw() +
  xlab("Gene A") +
  ylab("Gene B") +
  ggtitle("Example Re-centered Expression Values from Four Cells") +
  theme(plot.title = element_text(hjust = 0.5))

Create a covariance matrix

The next step that we will do after we have re-centered our data around the origin is to calculate a covariance matrix. As a reminder, the covariance is the joint variability of two random variables. In this case our random variables are the genes. The illustration below we provide examples for positive and negative covariance values along with a covariance that is near zero.

The equation to estimate the sample covariance is:

$cov(X,Y)=\frac{1}{n - 1}\sum_{i=1}^{n}(x_{i}-\bar{x})(y_{i}-\bar{y})$

Where:

X is Gene A
Y is Gene B
n is the number of cells
x_i is an expression value for Gene A in cell i
$\bar{x}$ is the mean expression value for Gene A
y_i is an expression value for Gene B in cell i
$\bar{y}$ is the mean expression value for Gene B

Now we will calculate the covariance for all pairwise comparisons for our re-centered expression data.

# Move the cell IDs to the rownames and convert the tibble to a matrix
recentered_expression_matrix <- recentered_expression_tibble %>%
  column_to_rownames("cells") %>%
  as.matrix()

# Create a covariance matrix
cov_matrix <- cov(recentered_expression_matrix)

# Print out the covariance matrix
cov_matrix

         Gene_A   Gene_B
Gene_A 799.3333 584.6667
Gene_B 584.6667 506.2500

Let’s go ahead and manually check a covariance by hand to ensure that we trust the outputted covariance matrix. Let’s estimate the covariance of Gene A and Gene B.

# Estimate the covariance of Gene A and Gene B by hand
(1/(4-1))*((0-25)*(4-27.25) + (12-25)*(30-27.25) + (65-25)*(57-27.25) + (23-25)*(18-27.25))

[1] 584.6667

# Or you can use the covariance function
cov(recentered_expression_matrix[, "Gene_A"], recentered_expression_matrix[, "Gene_B"])

[1] 584.6667

This value should match the covariance found in our covariance matrix for the covariance between Gene A and Gene B.

Exercise 1

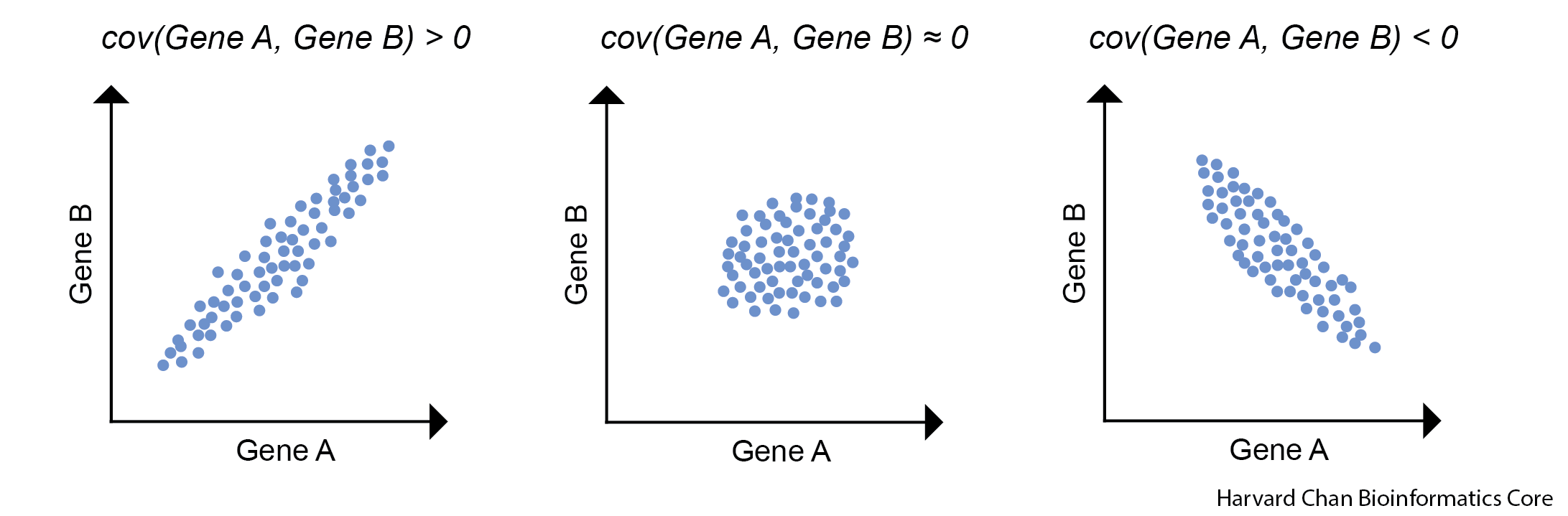

There are a couple properties of variance and covariance that we can verify:

cov(X,X) is equal to var(X). We can observe this is mathematically below:

$cov(X,X)=\frac{1}{n-1}\sum_{i=1}^{n}(x_{i}-\bar{x})(x_{i}-\bar{x})=\frac{1}{n-1}\sum_{i=1}^{n}(x_{i}-\bar{x})^{2}=var(X)$

As a result, you will sometimes see covariance matrices written as:

$\begin{bmatrix}var(X)&cov(X,Y)&...&cov(X,Z)\\cov(Y,X)&var(Y)&...&cov(Y,Z)\\...&...&...&...\\cov(Z,X)&cov(Z,Y)&...&var(Z)\\\end{bmatrix}$

Confirm this property by estimating the variance for Gene A.
Now estimate the covariance for Gene A and Gene A
Is the value the same? Does it match the value in the covariance matrix for Gene A and Gene A?
Another property of covariance is that cov(X,Y) is equal to cov(Y,X). We can observe this is mathematically below:

$cov(X,Y)=\frac{1}{n-1}\sum_{i=1}^{n}(x_{i}-\bar{x})(y_{i}-\bar{y})=\frac{1}{n-1}\sum_{i=1}^{n}(y_{i}-\bar{y})(x_{i}-\bar{x})=cov(Y,X)$

Estimate the covariance of Gene B and Gene A.

How does this compare to the covariance of Gene A and Gene B that we estimated by hand?

Calculating the Principal Components

Calculate Eigenvalues and Eigenvectors from the Covariance Matrix

First, we will need to calculate our eigenvalues, which are a measure of variance for a principal component. We can then use eigenvalues to calculate our eigenvectors, but R will do this all in a single step for us. We can think of the eigenvectors as the weights, or influence, for transforming our re-centered expression values into PCA space.

Now that we have a covariance matrix for the re-centered expression values, we need to estimate the eigenvalues and eigenvectors for the covariance matrix.

# Find the eigenvalues and eigenvectors of the covariance matrix
eig <- eigen(cov_matrix)

# Print the output from eigen()
eig

eigen() decomposition
$values
[1] 1255.543   50.040

$vectors
           [,1]       [,2]
[1,] -0.7883911  0.6151743
[2,] -0.6151743 -0.7883911

Click here to see how to calculate eigenvalues and eigenvectors

Calculating Eigenvalues

If we wanted to do this by hand then we need to set the determinant of the covariance matrix minus $\lambda$ times the identify matrix equal to 0 and solving for $\lambda$.

$det(\begin{bmatrix}var(X)&cov(X,Y)\\cov(Y,X)&var(Y)\\\end{bmatrix}-\lambda\begin{bmatrix}1&0\\0&1\\\end{bmatrix})=0$

In this case it can be simplified to:

$(var(X)-\lambda)(var(Y)-\lambda)-(cov(X,Y))(cov(Y,X))=0$

We can now replace the variance and covariance values with the values that we have from the covariance matrix and solve for $\lambda$. This results in two lambda values: $\lambda$₁ = 1255.543 and $\lambda$₂ = 50.04.

We can see that this is equal to the eigenvalues returned from our eig object:

# Print the eigenvalues
eig$values

[1] 1255.543   50.040

Calculating Eigenvectors

In order to find the eigenvectors, we need to substitute the variance and covariance values from the covariance matrix along with one of our $\lambda$ values, $\lambda$₁ to find the associated eigenvector, v₁. This results in v₁ being equal to -0.7883911, -0.6151743.

$(\begin{bmatrix}var(X)&cov(X,Y)\\cov(Y,X)&var(Y)\\\end{bmatrix}-\lambda _{1}\begin{bmatrix}1&0\\0&1\\\end{bmatrix})v_{1}=0$

We can confirm this by plugging our covariance matrix, eigenvalues and eigenvectors back into the above equation and it should return 0, or near 0 (due to rounding errors).

# Check the eigenvalues and eigenvectors
(cov_matrix - eig$values[1]*diag(2)) %*% eig$vectors[,1]

                [,1]
Gene_A -5.484729e-14
Gene_B -1.507339e-14

We then repeat this process for $\lambda$₂ in order to to find its associated eigenvector, v₂, which results in 0.6151743, -0.7883911. Thus, our resulting matrix of eigenvectors appears as:

# Print the eigenvectors
eig$vectors

           [,1]       [,2]
[1,] -0.7883911  0.6151743
[2,] -0.6151743 -0.7883911

Principal Component Scores

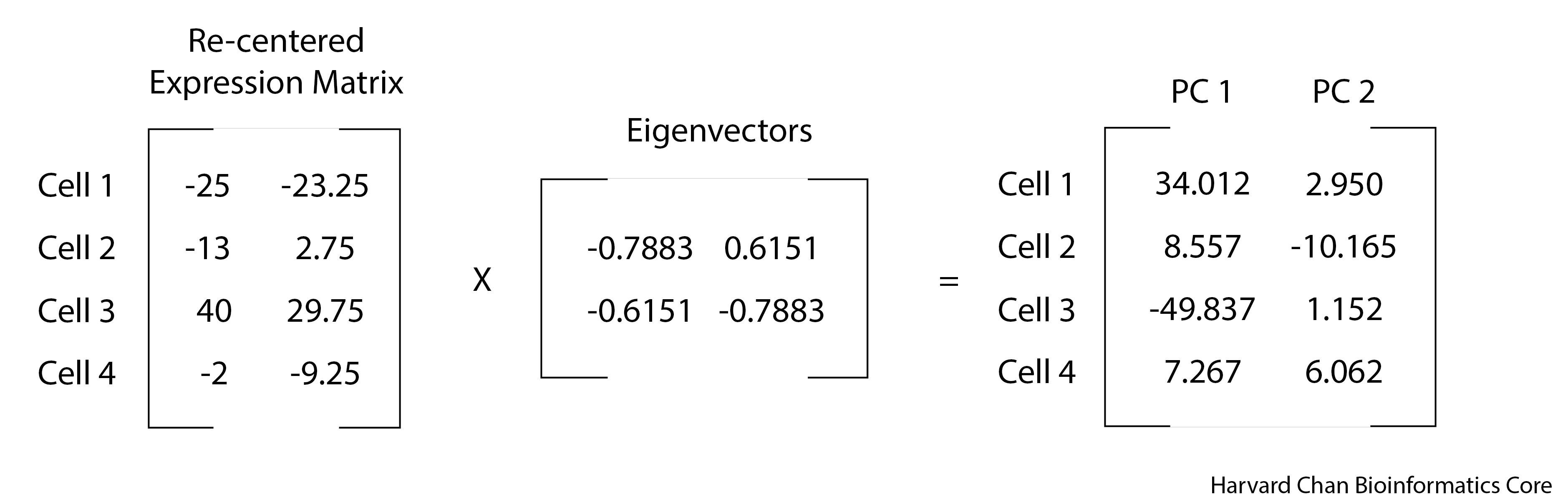

Now that we have our re-centered expression matrix and eigenvectors, we can perform matrix multiplication to obtain our principal component scores. This is where we are transforming our data from the re-centered expression into Principal Components space by the weight, or influence, of the eigenvector.

# Transform the data into PC space by multiply the re-centered expression matrix by the eigenvectors
pc_scores <- recentered_expression_matrix %*% eig$vectors
# Name the columns in pc_scores object
colnames(pc_scores) <- c("PC_1", "PC_2")

# Print out the pc_scores object
pc_scores

             PC_1       PC_2
Cell_1  34.012581   2.950736
Cell_2   8.557355 -10.165342
Cell_3 -49.837081   1.152337
Cell_4   7.267145   6.062269

Note

You can see the use of %*% here. This is the operator used to carry out matrix multiplication.

Percent Variance Explained

We are likely interested in knowing the amount of variance explained in our data by each principal component. As we alluded to earlier, we can use the eigenvalues to help us with this. The sum of all of the eigenvalues captures the total variance explained by the principal components analysis.

Thus, if we want to know the proportion of the variance explained by each principal component, then we would need to divide each eigenvalue by the total variance explained (the sum of the eigenvalues) and if we wanted this as a percentage then we would need to multiply it by 100.

# Calculate the percent of variance explained by each PC using the eigenvalues
pct_var_explained <- (eig$values / sum(eig$values)) * 100
# Name the elements of the pct_var_explained by their PC
names(pct_var_explained) <- c("PC_1", "PC_2")

# Print out the percent of variance explained by each PC
pct_var_explained

    PC_1     PC_2
96.16723  3.83277

Plotting our Principal Components

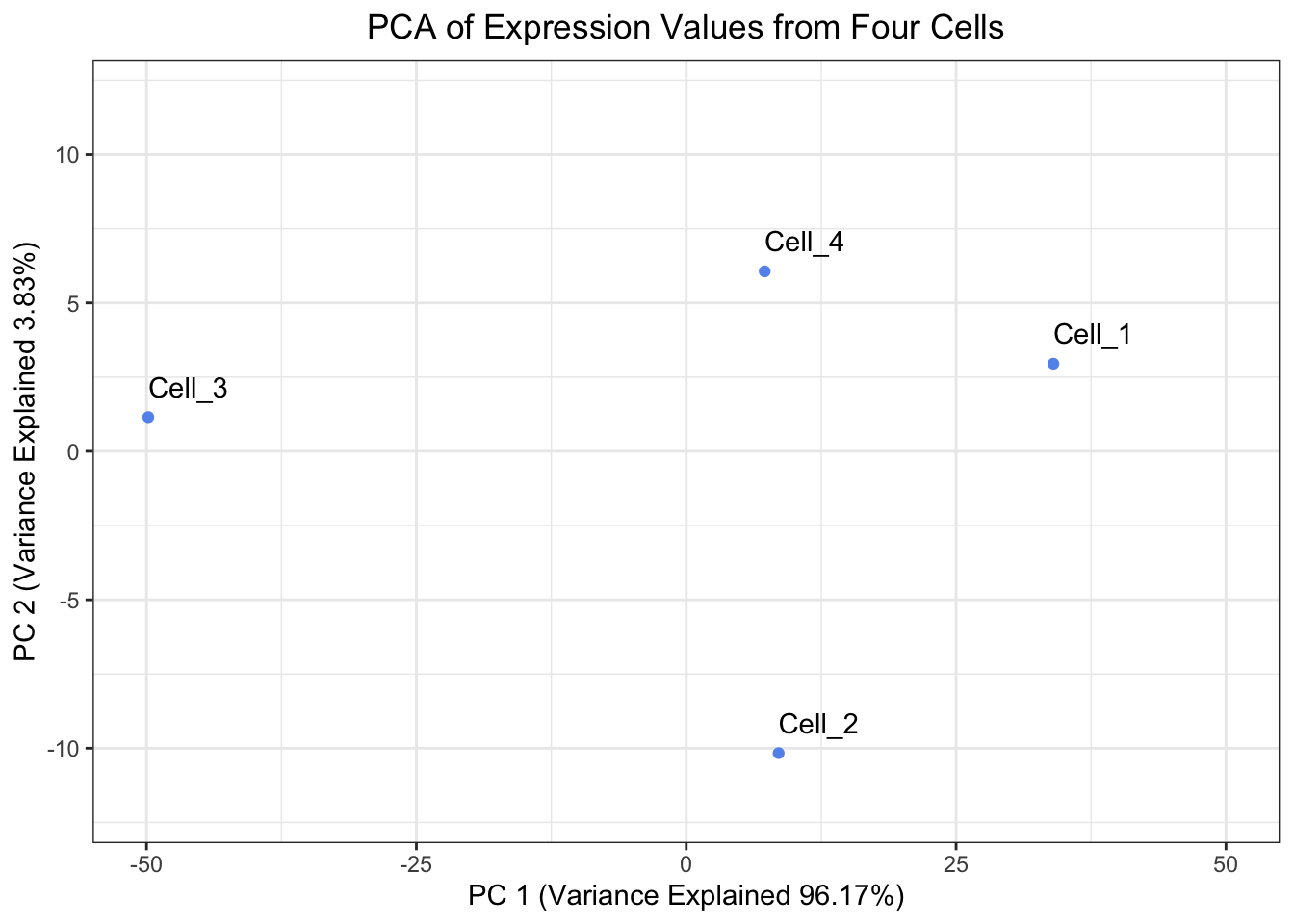

With our principal components in hand, we will create a visualization of the principal components.

# Create a tibble to hold the PC scores we found and also make the Cell IDs into a column
pc_scores_tibble <- pc_scores %>%
  as.data.frame() %>%
  rownames_to_column("cells") %>%
  as_tibble()

# Plot the PC scores we found
ggplot(pc_scores_tibble, aes(x = PC_1, y = PC_2, label = cells)) +
  geom_point( color = "cornflowerblue") +
  geom_text(hjust = 0, vjust = -1) +
  theme_bw() +
  xlim(-50, 50) +
  ylim(-12, 12) +
  xlab(paste0("PC 1 (Variance Explained ", round(pct_var_explained["PC_1"], digits = 2),"%)")) +
  ylab(paste0("PC 2 (Variance Explained ", round(pct_var_explained["PC_2"], digits = 2),"%)")) +
  ggtitle("PCA of Expression Values from Four Cells") +
  theme(plot.title = element_text(hjust = 0.5))

Exercise 2

When looking at the percent explained by each principal component, the first principal component should explain the most and each of the following principal components should explain less than the previous principal component. Let’s have a look at our pct_var_explained object, are our results congruent with this expectation?

`prcomp()` comparison

At this point we have completed a principal components analysis, but we can also compare it to how R does a principal components analysis and see how our results compare. One way to do a principal components analysis in R is to use the prcomp() function in R.

In order to run prcomp(), we need to start from an expression matrix and move the cell IDs to the rownames:

# Run prcomp() on the expression tibble after moving the Cell IDs to be rownames
prcomp_PCA <- expression_tibble %>%
  column_to_rownames("cells") %>%
  prcomp()

Let’s inspect the output from prcomp() to ensure that we are getting the same output:

Center of the Data

First we can ensure that we have the same center of the data. prcomp() says that the center of the data is:

# Print the center of the data found by prcomp()
prcomp_PCA$center

Gene_A Gene_B
 25.00  27.25

We can compare this with what we derived as the center of the data:

# Print the center of the data we found
center_of_data

Gene_A Gene_B
 25.00  27.25

They match which is a great sign that we did this correctly!

Eigenvalues

Note that eigenvalues are the variance for a particular principal component and variance is the square of the standard deviation as shown below.

$var(X)=sd(X)^{2}$

prcomp() reports the standard deviation, so we will need to square the items in the prcomp_PCA$sdev slot in order to recover our variance, or eigenvalues.

# Print the eigenvalues found by prcomp() by squaring prcomp_PCA$sdev
prcomp_eigenvalues <- prcomp_PCA$sdev ** 2
# Name the elements of the prcomp_eigenvalues by their PC
names(prcomp_eigenvalues) <- c("PC_1", "PC_2")

# Print out prcomp_eigenvalues
prcomp_eigenvalues

    PC_1     PC_2
1255.543   50.040

We can compare this with our estimation of eigenvalues by hand:

# Print the eigenvalues we found
eig$values

[1] 1255.543   50.040

Eigenvectors

Let’s go ahead and compare the eigenvectors from prcomp() to the eigenvectors that we calculated. prcomp() calculated the eigenvectors as:

# Print the eigenvectors found by prcomp()
prcomp_PCA$rotation

             PC1        PC2
Gene_A 0.7883911  0.6151743
Gene_B 0.6151743 -0.7883911

While we calculated the eigenvectors as:

# Print the eigenvectors we found
eig$vectors

           [,1]       [,2]
[1,] -0.7883911  0.6151743
[2,] -0.6151743 -0.7883911

We can see that the values are the same, but the sign is flipped between the two methods. This is because eigenvectors are only defined “up to sign”. This means for a given eigenvalue, the eigenvector v₁ and -v₁ are the same line, but point in different directions. This does not impact our principal components calculations. However, it could mean that a plot derived v₁ will look rotated 180° when compared to a plot derived from -v₁. Regardless, it looks like we have the same eigenvectors in both approaches.

PC Scores

Finally, we can check our PC scores to ensure that they are also equivalent. We should note that since the eigenvector from prcomp() and the eigenvector we calculated differed by sign and eigenvectors are multiplied by the re-centered expression, then we should expect our principal components to also differ by sign. The principal components from prcomp() are:

# Print the PC scores found by prcomp()
prcomp_PCA$x

              PC1        PC2
Cell_1 -34.012581   2.950736
Cell_2  -8.557355 -10.165342
Cell_3  49.837081   1.152337
Cell_4  -7.267145   6.062269

While our calculated principal components were:

# Print the PC scores we found
pc_scores

             PC_1       PC_2
Cell_1  34.012581   2.950736
Cell_2   8.557355 -10.165342
Cell_3 -49.837081   1.152337
Cell_4   7.267145   6.062269

Once again, the values are the same, but the only difference is the sign, which comes from the arbitrary direction of the eigenvector.

Exercise 3

Create a plot of the Principal Components Analysis derived from prcomp(). Is it the same as the plot we derived except only rotated 180°?

Number of PCs

When carrying out a PCA, it could be interesting the know how many the possible Principal Components axes exist. The answer isn’t so simple but the easiest metric to use is that the number of PCs ≤ minimum(number_of_genes, number_of_cells). For a deeper dive in how the number of PCs is determined and factors that influence them, consider this lesson.

--- title: "Theory of PCA" author: - Will Gammerdinger - Noor Sohail - Zhu Zhuo - James Billingsley - Shannan Ho Sui date: "Tuesday, July 22, 2025" editor_options: markdown: wrap: 72 --- ```{r} #| label: load_libraries #| echo: false # Load libraries library(Seurat) load("data/seurat_filtered.RData") ``` Approximate time: 45 minutes # Learning Objectives - Derive the covariance matrix used for Principal Components Analysis - Explain the roles of eigenvectors and eigenvalues within a Principal Components Analysis - Compare and contrast our Principal Components Analysis to the output of `prcomp()` # Background Principal Components Analysis is a ***dimensionality-reduction method employed to stratify data by their variance***. In other words, points that are more closely together on a PCA are more similar to each other, while points that are more dissimilar to each other will be further apart. As a result, you would likely expect ***similar cells from the same cell type to cluster near each other and apart from distinctly different cell types***. In order to demonstrate how Principal Components Analysis works we are going to describe how the process works in high-dimensional data, then work through it using a two-dimensional example data set. Consider a single-cell experiment where you have the expression value for every gene in each cell. Let's hypothetically say that our sample has data from 25,000 genes. We could plot this 25,000-dimensional space where each dimension represents a given gene's expression and each point represents a cell in that 25,000-dimensional space. However, that is rather unintuitive and many of those dimensions are uninteresting, so we would like to reduce the dimensionality to the axes that separate the variance the most. This is what we will be doing with a Principal Components Analysis. From a high-level perspective, what we will be doing is: - Finding the vector in that 25,000-dimensional space that has the most variance in it. - Looking for another vector that is orthogonal (a 90° angle but in multi-dimensional space) to the first vector that explains the most of the remaining variance. We continue this process until you have exhausted all source of variantion from your dataset. However, in practice, people oftentimes stop after a few dozen. - Use these vectors to transform your original data into Principal Components space. # Setting up to calculate Eigenvalues and Eigenvectors Let's open a new R script and save it as `PCA-example.R`. Next, we will be using some functions from `tidyverse` in the lesson, so we will need to load it: ```{r load_tidyverse} library(tidyverse) ``` ## Creating an example data set We are going to discuss the steps for deriving a Principal Components analysis, but in order to do it, we are going to use an example dataset. Let's start by creating an tibble that has gene expression values for two genes from four cells. ```{r create_tibble} # Create a vector for Cell IDs cells <- c("Cell_1", "Cell_2", "Cell_3", "Cell_4") # Create a vector to hold expression values for Gene A across all of the cells Gene_A <- c(0, 12, 65, 23) # Create a vector to hold expression values for Gene B across all of the cells Gene_B <- c(4, 30, 57, 18) # Create a tibble to hold the cell names and expression values expression_tibble <- tibble(cells, Gene_A, Gene_B) # View the expression tibble expression_tibble ``` Let's get an idea of what our data looks like by plotting it: ```{r plot_raw_data} # Create a plot to view the raw expression data ggplot(expression_tibble, aes(x = Gene_A, y = Gene_B, label = cells)) + geom_point(color = "cornflowerblue") + geom_text(hjust = 0, vjust = -1) + xlim(0, 80) + ylim(0, 80) + theme_bw() + xlab("Gene A") + ylab("Gene B") + ggtitle("Example Expression Values from Four Cells") + theme(plot.title = element_text(hjust = 0.5)) ``` As a reminder, if were were to consider our data set, it would have ***`r format(nrow(filtered_seurat), scientific=FALSE)`*** genes and ***`r format(ncol(filtered_seurat), scientific=FALSE)`*** cells, so this is a simplified example. ## Re-centering the dataset The first step of PCA is to find the central spot among all of our datapoints (cells) and use that as the origin to re-center the data. In order to do this, we need to do two steps: **1. Find the center of the data** We can find the center of the data by taking the average gene expression across each gene (dimension). ```{r center_of_data} # Determine the center of the data by: # Finding the average expression of gene A Gene_A_mean <- mean(expression_tibble$Gene_A) # Finding the average expression of gene B Gene_B_mean <- mean(expression_tibble$Gene_B) # Create a vector to hold the center of the data center_of_data <- c(Gene_A_mean, Gene_B_mean) # Assign names to the components of the vector names(center_of_data) <- c("Gene_A", "Gene_B") # Print out the center_of_data vector center_of_data ``` The new center of the data will be where ***( `r center_of_data` )*** currently is. We can visualize this center and inspect that this is does in fact appear to be roughly in the middle of the data. ``` {r new_center_plot} # View where the center of the data is located ggplot(expression_tibble, aes(x = Gene_A, y = Gene_B, label = cells)) + geom_point(color = "cornflowerblue") + annotate("point", x = Gene_A_mean, y = Gene_B_mean, color = "red", size = 3) + geom_text(hjust = 0, vjust = -1) + annotate("text", x = Gene_A_mean, y = Gene_B_mean, color = "red", label="New Center", hjust = 0, vjust = -1) + xlim(0, 80) + ylim(0, 80) + theme_bw() + xlab("Gene A") + ylab("Gene B") + ggtitle("Example Expression Values from Four Cells") + theme(plot.title = element_text(hjust = 0.5)) ``` **2. Translate the points from their raw expression coordinates to coordinates centered around the center of the data** Next, we need to shift the points so that the center of the data corresponds to the origin. We can do this by subtracting the mean value for each gene from the raw values. ```{r recentered_data} # Shift the data points so that they data is centered on the origin recentered_expression_tibble <- expression_tibble %>% mutate( Gene_A = Gene_A - Gene_A_mean, Gene_B = Gene_B - Gene_B_mean ) # Print out the re-centered data recentered_expression_tibble ``` *As with any data analysis, it is always a good idea to visualize your data to ensure that it appears to behaving how you intended.* So let's visualize our re-centered data to ensure that the data appears centered around the origin. ```{r plot_recentered_data} # Plot the raw data after it has been shifted to have the center of the data align with the origin ggplot(recentered_expression_tibble, aes(x = Gene_A, y = Gene_B, label = cells)) + geom_point(color = "cornflowerblue") + annotate("point", x = 0, y = 0, color = "red", size = 3) + geom_text(hjust = 0, vjust = -1) + annotate("text", x = 0, y = 0, color = "red", label="New Center", hjust = 0, vjust = -1) + xlim(-50, 50) + ylim(-50, 50) + theme_bw() + xlab("Gene A") + ylab("Gene B") + ggtitle("Example Re-centered Expression Values from Four Cells") + theme(plot.title = element_text(hjust = 0.5)) ``` ## Create a covariance matrix The next step that we will do after we have re-centered our data around the origin is to calculate a covariance matrix. As a reminder, the covariance is the joint variability of two random variables. In this case our random variables are the genes. The illustration below we provide examples for positive and negative covariance values along with a covariance that is near zero. <img src="../img/Covariance.png" width="800"> The equation to estimate the sample covariance is: <img src="https://latex.codecogs.com/svg.image?&space;cov(X,Y)=\frac{1}{n - 1}\sum_{i=1}^{n}(x_{i}-\bar{x})(y_{i}-\bar{y})" width="300"> Where: - *X* is Gene A - *Y* is Gene B - *n* is the number of cells - *x~i~* is an expression value for Gene A in cell *i* - *$\bar{x}$* is the mean expression value for Gene A - *y~i~* is an expression value for Gene B in cell *i* - *$\bar{y}$* is the mean expression value for Gene B Now we will calculate the covariance for all pairwise comparisons for our re-centered expression data. ```{r create_covariance_matrix} # Move the cell IDs to the rownames and convert the tibble to a matrix recentered_expression_matrix <- recentered_expression_tibble %>% column_to_rownames("cells") %>% as.matrix() # Create a covariance matrix cov_matrix <- cov(recentered_expression_matrix) # Print out the covariance matrix cov_matrix ``` Let's go ahead and manually check a covariance by hand to ensure that we trust the outputted covariance matrix. Let's estimate the covariance of Gene A and Gene B. ```{r handcheck_covariance_matrix} # Estimate the covariance of Gene A and Gene B by hand (1/(4-1))*((0-25)*(4-27.25) + (12-25)*(30-27.25) + (65-25)*(57-27.25) + (23-25)*(18-27.25)) # Or you can use the covariance function cov(recentered_expression_matrix[, "Gene_A"], recentered_expression_matrix[, "Gene_B"]) ``` This value should match the covariance found in our covariance matrix for the covariance between Gene A and Gene B. ::: callout-tip # [**Exercise 1**](06_theory_of_PCA_Answer-key.qmd#exercise-1) There are a couple properties of variance and covariance that we can verify: *cov(X,X)* is equal to *var(X)*. We can observe this is mathematically below: <img src="https://latex.codecogs.com/svg.image?&space;cov(X,X)=\frac{1}{n-1}\sum_{i=1}^{n}(x_{i}-\bar{x})(x_{i}-\bar{x})=\frac{1}{n-1}\sum_{i=1}^{n}(x_{i}-\bar{x})^{2}=var(X)" width="500"> As a result, you will sometimes see covariance matrices written as: <img src="https://latex.codecogs.com/svg.image?\begin{bmatrix}var(X)&cov(X,Y)&...&cov(X,Z)\\cov(Y,X)&var(Y)&...&cov(Y,Z)\\...&...&...&...\\cov(Z,X)&cov(Z,Y)&...&var(Z)\\\end{bmatrix}" width="300"> 1. Confirm this property by estimating the variance for Gene A. 2. Now estimate the covariance for Gene A and Gene A 3. Is the value the same? Does it match the value in the covariance matrix for Gene A and Gene A? 4. Another property of covariance is that *cov(X,Y)* is equal to *cov(Y,X)*. We can observe this is mathematically below: <img src="https://latex.codecogs.com/svg.image?&space;cov(X,Y)=\frac{1}{n-1}\sum_{i=1}^{n}(x_{i}-\bar{x})(y_{i}-\bar{y})=\frac{1}{n-1}\sum_{i=1}^{n}(y_{i}-\bar{y})(x_{i}-\bar{x})=cov(Y,X)" width="500"> Estimate the covariance of Gene B and Gene A. 5. How does this compare to the covariance of Gene A and Gene B that we estimated by hand? ::: # Calculating the Principal Components ## Calculate Eigenvalues and Eigenvectors from the Covariance Matrix First, we will need to calculate our eigenvalues, which are a measure of variance for a principal component. We can then use eigenvalues to calculate our eigenvectors, but R will do this all in a single step for us. We can think of the eigenvectors as the weights, or influence, for transforming our re-centered expression values into PCA space. Now that we have a covariance matrix for the re-centered expression values, we need to estimate the eigenvalues and eigenvectors for the covariance matrix. ```{r eigen_calculation} # Find the eigenvalues and eigenvectors of the covariance matrix eig <- eigen(cov_matrix) # Print the output from eigen() eig ``` ::: {.callout-note collapse="true" title="Click here to see how to calculate eigenvalues and eigenvectors"} **Calculating Eigenvalues** If we wanted to do this by hand then we need to set the determinant of the covariance matrix minus $\lambda$ times the identify matrix equal to 0 and solving for $\lambda$. <img src="https://latex.codecogs.com/svg.image?det(\begin{bmatrix}var(X)&cov(X,Y)\\cov(Y,X)&var(Y)\\\end{bmatrix}-\lambda\begin{bmatrix}1&0\\0&1\\\end{bmatrix})=0" width="500"> In this case it can be simplified to: <img src="https://latex.codecogs.com/svg.image?(var(X)-\lambda)(var(Y)-\lambda)-(cov(X,Y))(cov(Y,X))=0" width="500"> We can now replace the variance and covariance values with the values that we have from the covariance matrix and solve for $\lambda$. This results in two lambda values: **$\lambda$~1~ = `r round(eig$values[1], digits = 3)`** and **$\lambda$~2~ = `r round(eig$values[2], digits = 3)`**. We can see that this is equal to the eigenvalues returned from our `eig` object: ```{r eigenvalues} # Print the eigenvalues eig$values ``` **Calculating Eigenvectors** In order to find the eigenvectors, we need to substitute the variance and covariance values from the covariance matrix along with one of our *$\lambda$* values, *$\lambda$~1~* to find the associated eigenvector, *v~1~*. This results in *v~1~* being equal to `r eig$vectors[,1]`. <img src="https://latex.codecogs.com/svg.image?(\begin{bmatrix}var(X)&cov(X,Y)\\cov(Y,X)&var(Y)\\\end{bmatrix}-\lambda&space;_{1}\begin{bmatrix}1&0\\0&1\\\end{bmatrix})v_{1}=0" width="500"> We can confirm this by plugging our covariance matrix, eigenvalues and eigenvectors back into the above equation and it should return 0, or near 0 (due to rounding errors). ```{r check_eigen} # Check the eigenvalues and eigenvectors (cov_matrix - eig$values[1]*diag(2)) %*% eig$vectors[,1] ``` We then repeat this process for *$\lambda$~2~* in order to to find its associated eigenvector, *v~2~*, which results in `r eig$vectors[,2]`. Thus, our resulting matrix of eigenvectors appears as: ```{r eigenvectors} # Print the eigenvectors eig$vectors ``` ::: ## Principal Component Scores Now that we have our re-centered expression matrix and eigenvectors, we can perform matrix multiplication to obtain our principal component scores. This is where we are transforming our data from the re-centered expression into Principal Components space by the weight, or influence, of the eigenvector. <img src="../img/PC_generation.png" width="800"> ```{r pc_scores} # Transform the data into PC space by multiply the re-centered expression matrix by the eigenvectors pc_scores <- recentered_expression_matrix %*% eig$vectors # Name the columns in pc_scores object colnames(pc_scores) <- c("PC_1", "PC_2") # Print out the pc_scores object pc_scores ``` :::callout-note You can see the use of `%*%` here. This is the operator used to carry out matrix multiplication. ::: ## Percent Variance Explained We are likely interested in knowing the amount of variance explained in our data by each principal component. As we alluded to earlier, we can use the eigenvalues to help us with this. The sum of all of the eigenvalues captures the total variance explained by the principal components analysis. Thus, if we want to know the proportion of the variance explained by each principal component, then we would need to divide each eigenvalue by the total variance explained (the sum of the eigenvalues) and if we wanted this as a percentage then we would need to multiply it by 100. ```{r percent_explained} # Calculate the percent of variance explained by each PC using the eigenvalues pct_var_explained <- (eig$values / sum(eig$values)) * 100 # Name the elements of the pct_var_explained by their PC names(pct_var_explained) <- c("PC_1", "PC_2") # Print out the percent of variance explained by each PC pct_var_explained ``` ## Plotting our Principal Components With our principal components in hand, we will create a visualization of the principal components. ```{r plotting_PCA_hand} # Create a tibble to hold the PC scores we found and also make the Cell IDs into a column pc_scores_tibble <- pc_scores %>% as.data.frame() %>% rownames_to_column("cells") %>% as_tibble() # Plot the PC scores we found ggplot(pc_scores_tibble, aes(x = PC_1, y = PC_2, label = cells)) + geom_point( color = "cornflowerblue") + geom_text(hjust = 0, vjust = -1) + theme_bw() + xlim(-50, 50) + ylim(-12, 12) + xlab(paste0("PC 1 (Variance Explained ", round(pct_var_explained["PC_1"], digits = 2),"%)")) + ylab(paste0("PC 2 (Variance Explained ", round(pct_var_explained["PC_2"], digits = 2),"%)")) + ggtitle("PCA of Expression Values from Four Cells") + theme(plot.title = element_text(hjust = 0.5)) ``` ::: callout-tip # [**Exercise 2**](06_theory_of_PCA_Answer-key.qmd#exercise-2) When looking at the percent explained by each principal component, the first principal component should explain the most and each of the following principal components should explain less than the previous principal component. Let's have a look at our `pct_var_explained` object, are our results congruent with this expectation? ::: # `prcomp()` comparison At this point we have completed a principal components analysis, but we can also compare it to how R does a principal components analysis and see how our results compare. One way to do a principal components analysis in R is to use the `prcomp()` function in R. In order to run `prcomp()`, we need to start from an expression matrix and move the cell IDs to the rownames: ```{r prcomp_check} # Run prcomp() on the expression tibble after moving the Cell IDs to be rownames prcomp_PCA <- expression_tibble %>% column_to_rownames("cells") %>% prcomp() ``` Let's inspect the output from `prcomp()` to ensure that we are getting the same output: ## Center of the Data First we can ensure that we have the same center of the data. `prcomp()` says that the center of the data is: ```{r center_prcomp} # Print the center of the data found by prcomp() prcomp_PCA$center ``` We can compare this with what we derived as the center of the data: ```{r center_hand} # Print the center of the data we found center_of_data ``` They match which is a great sign that we did this correctly! ## Eigenvalues Note that eigenvalues are the variance for a particular principal component and variance is the square of the standard deviation as shown below. <img src="https://latex.codecogs.com/svg.image?var(X)=sd(X)^{2}" width="150"> `prcomp()` reports the standard deviation, so we will need to square the items in the `prcomp_PCA$sdev` slot in order to recover our variance, or eigenvalues. ```{r eigenvalues_prcomp} # Print the eigenvalues found by prcomp() by squaring prcomp_PCA$sdev prcomp_eigenvalues <- prcomp_PCA$sdev ** 2 # Name the elements of the prcomp_eigenvalues by their PC names(prcomp_eigenvalues) <- c("PC_1", "PC_2") # Print out prcomp_eigenvalues prcomp_eigenvalues ``` We can compare this with our estimation of eigenvalues by hand: ```{r eigenvalue_hand} # Print the eigenvalues we found eig$values ``` ## Eigenvectors Let's go ahead and compare the eigenvectors from `prcomp()` to the eigenvectors that we calculated. `prcomp()` calculated the eigenvectors as: ```{r eigenvector_prcomp} # Print the eigenvectors found by prcomp() prcomp_PCA$rotation ``` While we calculated the eigenvectors as: ```{r eigenvector_hand} # Print the eigenvectors we found eig$vectors ``` We can see that the values are the same, but the sign is flipped between the two methods. This is because eigenvectors are only defined "up to sign". This means for a given eigenvalue, the eigenvector *v~1~* and *-v~1~* are the same line, but point in different directions. This does not impact our principal components calculations. However, it could mean that a plot derived *v~1~* will look rotated 180° when compared to a plot derived from *-v~1~*. Regardless, it looks like we have the same eigenvectors in both approaches. ## PC Scores Finally, we can check our PC scores to ensure that they are also equivalent. We should note that since the eigenvector from `prcomp()` and the eigenvector we calculated differed by sign and eigenvectors are multiplied by the re-centered expression, then we should expect our principal components to also differ by sign. The principal components from `prcomp()` are: ```{r pc_scores_prcomp} # Print the PC scores found by prcomp() prcomp_PCA$x ``` While our calculated principal components were: ```{r pc_scores_hand} # Print the PC scores we found pc_scores ``` Once again, the values are the same, but the only difference is the sign, which comes from the arbitrary direction of the eigenvector. ::: callout-tip # [**Exercise 3**](06_theory_of_PCA_Answer-key#exercise-3) Create a plot of the Principal Components Analysis derived from `prcomp()`. Is it the same as the plot we derived except only rotated 180°? ::: # Number of PCs When carrying out a PCA, it could be interesting the know how many the possible Principal Components axes exist. The answer isn't so simple but the easiest metric to use is that **the number of PCs ≤ minimum(number_of_genes, number_of_cells)**. For a deeper dive in how the number of PCs is determined and factors that influence them, consider [this lesson](Aside_Number_of_PCs.qmd).
