Arranging Layouts

This lesson introduces how to design and organize user interface layouts in Shiny applications. You will learn how to use layout functions such as sidebarLayout(), fluidRow(), and column() to arrange app components, as well as how to create navigation structures with navbarPage(), navlistPanel(), and tabsetPanel(). The lesson also covers how to enhance app appearance using thematic breaks (hr()) and the shinythemes package.

Keywords

Shiny UI, Layouts, sidebarLayout, fluidRow, column, navbarPage, navlistPanel, tabsetPanel, shinythemes, titlePanel, app organization, navigation bar, UI structure

Learning Objectives

In this lesson, you will:

• Manage the layout of your Shiny app
• Implement different shinythemes

Introduction

Until now most of our work has focused on server side implementations of concepts. We have discussed the UI components required to carry the tasks that we want, but we haven’t discussed how we want to arrange them. This section will almost exclusively focus on the UI and how to arrange and organize the components of the UI into a visually appealing app.

Sidebars

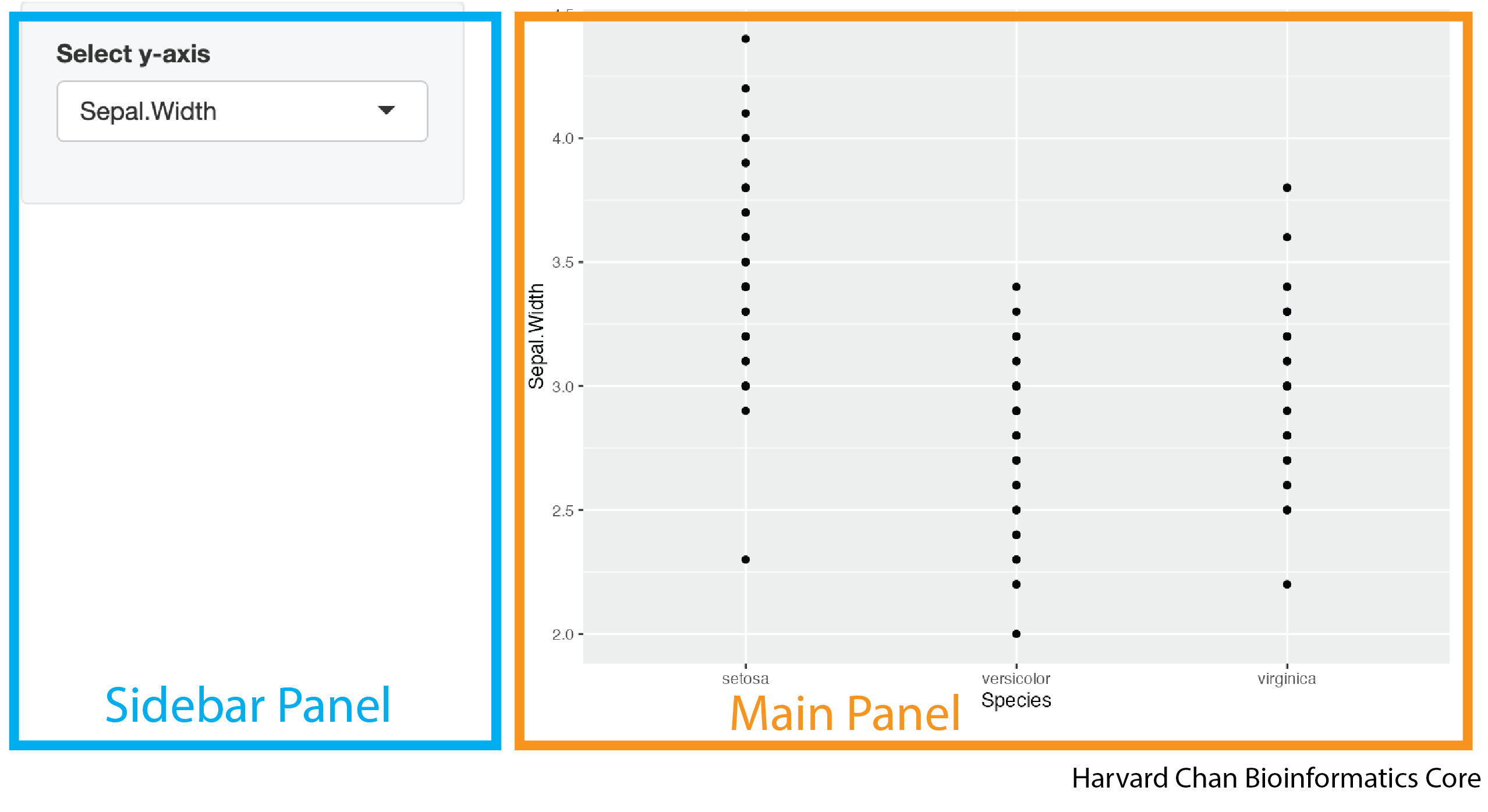

It is common in many apps to have the user defined input control on a sidebar to the left and the rendered plots and tables on the right. In the image below we have highlighted what a sidepanel and mainpanel might like in a Shiny App.

Creating this structure within a Shiny app utilizes the sidebarLayout() function. The sidebarLayout() function in your UI defines that this region of your app is using a sidebar panel defined by sidebarPanel() and a main panel defined by mainPanel(). The sidebarPanel() and mainPanel() function are nested inside of your sidebarLayout(). Let’s look at the syntax for how to implement this:

# DO NOT RUN
ui <- fluidPage(
  sidebarLayout(
    sidebarPanel(
      <objects_in_your_sidebar_panel>
    ),
    mainPanel(
      <objects_in_your_main_panel>
    )
  )
)

A sample app demostrating this syntax would look like:

library(shiny)
library(ggplot2)

ui <- fluidPage(
  sidebarLayout(
    sidebarPanel(
      selectInput(inputId = "y_axis_input",
                  label = "Select y-axis",
                  choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width"))
    ),
    mainPanel(
      plotOutput("plot")
    )
  )
)

server <- function(input, output) {
  output$plot <- renderPlot({
    ggplot(iris) +
      geom_point(aes(x = Species,
                     y = .data[[input$y_axis_input]]))
  })
}

shinyApp(ui = ui, server = server)

This app would look like:

Adding a title

You may want your app to have a title. You can add this with the titlePanel() function. The syntax for doing this looks like:

# DO NOT RUN
titlePanel("<title_of_your_app>")

The default behavior of titlePanel() is to left-align the title. If you would like center your title you will need to use an h1() function within your titlePanel() function. The h1() function is borrowed from HTML nomenclature and refers to the largest sized header. The smallest sized header in HTML is h6() and the values in between h1() and h6() (h2(), h3(), h4(), h5()) span the range of sizes between h1() and h6(). Within the h[1-6]() family of function, there is an align argument that accepts the ("left", "center", and "right") for the alignment. So a center aligned title could looke like:

# DO NOT RUN
titlePanel(
  h1("<title_of_your_app>", align = "center")
)

We can add this title to our previous app:

library(shiny)
library(ggplot2)

ui <- fluidPage(
  titlePanel(
    h1("My iris Shiny App", align = "center")
  ),
  sidebarLayout(
    sidebarPanel(
      selectInput(inputId = "y_axis_input",
                  label = "Select y-axis",
                  choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width"))
    ),
    mainPanel(
      plotOutput("plot")
    )
  )
)

server <- function(input, output) {
  output$plot <- renderPlot({
    ggplot(iris) +
      geom_point(aes(x = Species,
                     y = .data[[input$y_axis_input]]))
  })
}

shinyApp(ui = ui, server = server)

This app would now look like:

Creating columns

We have shown how to use the sidebarLayout() function, but we may want to have multiple columns in our data and the sidebarLayout() function can’t help to much with that. Fortunately, there is the fluidRow() function that allows us to divide up the row into columns using the column() function nested within it. The first argument within the column() function defines the width of the column and the sum of all of the widths of a column for a given fluidRow() function should sum to 12. If the width value in fluidRow() is left undefined then it defaults to 12. An example of this syntax would be:

# DO NOT RUN
fluidRow(
  column(<width_of_first_column>,
    <objects_in_first_column>
  ),
  column(<width_of_second_column>,
    <objects_in_second_column>
  )
)

We could make equally sized columns in our app like:

library(shiny)
library(ggplot2)

ui <- fluidPage(
  titlePanel(
    h1("My iris Shiny App", align = "center")
  ),
  fluidRow(
    column(6,
      h3("First column"),
      selectInput(inputId = "y_axis_input",
                  label = "Select y-axis",
                  choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width"))
    ),
    column(6,
      h3("Second column"),
      plotOutput("plot")
    )
  )
)

server <- function(input, output) {
  output$plot <- renderPlot({
    ggplot(iris) +
      geom_point(aes(x = Species,
                     y = .data[[input$y_axis_input]]))
  })
}

shinyApp(ui = ui, server = server)

This app would look like:

Note

Within the column() function, you can also specify the alignment within the column by using the align option. When using the align option, you can specify the alignment be "left", "right" or "center". The syntax for this would look like:

column(<width_of_column>,
       align = "center",
       <content_of_column>)

Nested columns

You can also nest fluidRow() functions within the column() function of another fluidRow() function. Once again, the important rule when using fluidRow() is that the sum of the column()’s width value within each fluidRow() sums to 12. Let’s take a look at some example syntax of how this would look:

# DO NOT RUN
fluidRow(
  column(<width_of_first_main_column>,
    fluidRow(
      column(<width_of_first_subcolumn_of_the_first_main_column>,
        <objects_in_first_column_first_subcolumn>
      ),
      column(<width_of_second_subcolumn_of_the_first_main_column>,
        <objects_in_first_column_second_subcolumn>        )
    )
  ),
  column(<width_of_second_main_column>,
    <objects_in_second_column>
  )
)

We can apply these principles to our app:

library(shiny)
library(ggplot2)

ui <- fluidPage(
  titlePanel(
    h1("My iris Shiny App", align = "center")
  ),
  fluidRow(
    column(7,
      fluidRow(
        column(6,
        h3("First column: First subcolumn"),
        selectInput(inputId = "x_axis_input",
                    label = "Select x-axis",
                    choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width"))
        ),
        column(6,
        h3("First column: Second subcolumn"),
        selectInput(inputId = "y_axis_input",
                    label = "Select y-axis",
                    choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width"))
        )
      )
    ),
    column(5,
      h3("Second column"),
      plotOutput("plot")
    )
  )
)

server <- function(input, output) {
  output$plot <- renderPlot({
    ggplot(iris) +
      geom_point(aes(x = .data[[input$x_axis_input]],
                     y = .data[[input$y_axis_input]]))
  })
}

shinyApp(ui = ui, server = server)

This app would look like:

Multiple Rows

Now that we’ve seen how to make multiple columns, let’s breifly talk about multiple rows. Instead of nesting fluidRow() function within one another, we will treat them like we’ve treated objects that go underneath one another, by putting complete fluidRow() functions underneath each other in out code. An example of this syntax can be seen below:

# DO NOT RUN
fluidRow(
  column(<width_of_first_column_in_the_first_row>,
    <objects_in_first_column_first_row>
  ),
  column(<width_of_second_column_in_the_first_row>,
    <objects_in_second_column_first_row>
  )
),
fluidRow(
  column(<width_of_first_column_in_the_second_row>,
    <objects_in_first_column_second_row>
  ),
  column(<width_of_second_column_in_the_second_row>,
    <objects_in_second_column_second_row>
  )
)

We can apply the concept of multiple rows to our app:

library(shiny)
library(ggplot2)

ui <- fluidPage(
  titlePanel(
    h1("My iris Shiny App", align = "center")
  ),
  fluidRow(
    column(6,
      h3("First Row: First column"),
      selectInput(inputId = "x_axis_input",
                  label = "Select x-axis",
                  choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width"))
    ),
      column(6,
      h3("First Row: Second column"),
      selectInput(inputId = "y_axis_input",
                  label = "Select y-axis",
                  choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width"))
    )
  ),
  fluidRow(
      h3("Second Row"),
      plotOutput("plot")
  )
)

server <- function(input, output) {
  output$plot <- renderPlot({
    ggplot(iris) +
      geom_point(aes(x = .data[[input$x_axis_input]],
                     y = .data[[input$y_axis_input]]))
  })
}

shinyApp(ui = ui, server = server)

This app would look like:

Thematic Breaks

Thematic breaks are a great way to break-up different parts of an app. The function to add a themetic break is also borrowed from HTML and it is called hr(). The syntax for using it is very simple:

# DO NOT RUN
hr()

In the previous example, if we wanted to break up the selectInput() functions from the plotOutput() function, then we could add a thematic break like:

library(shiny)
library(ggplot2)

ui <- fluidPage(
  titlePanel(
    h1("My iris Shiny App", align = "center")
  ),
  fluidRow(
    column(6,
           h3("First Row: First column"),
           selectInput(inputId = "x_axis_input",
                       label = "Select x-axis",
                       choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width"))
    ),
    column(6,
           h3("First Row: Second column"),
           selectInput(inputId = "y_axis_input",
                       label = "Select y-axis",
                       choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width"))
    )
  ),
  hr(),
  fluidRow(
    h3("Second Row"),
    plotOutput("plot")
  )
)

server <- function(input, output) {
  output$plot <- renderPlot({
    ggplot(iris) +
      geom_point(aes(x = .data[[input$x_axis_input]],
                     y = .data[[input$y_axis_input]]))
  })
}

shinyApp(ui = ui, server = server)

This app would now look like:

Navbar

Within an app, adding a navigation bar can help users more easily more around an app. The syntax for adding a navigation bar looks like:

# DO NOT RUN
navbarPage("<title_of_navigation_bar>",
  tabPanel("<title_of_tab_1>",
    <content_of_tab_1>
  ),
  tabPanel("<title_of_tab_2>",
    <content_of_tab_2>
  ),
)

The use of the navbarPage() function lets the Shiny UI know that there will be a nagivation bar on the app. The tabPanel() is used within the navbarPage() function along with a few other functions that we will explore to define the contents of each tab. An example of this code is shown below:

library(shiny)
library(ggplot2)

ui <- fluidPage(
  navbarPage("My iris dataset",
    tabPanel("Inputs",
      selectInput(inputId = "x_axis_input",
                  label = "Select x-axis",
                  choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width")),
      selectInput(inputId = "y_axis_input",
                  label = "Select y-axis",
                  choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width"))
    ),
    tabPanel("Output Plot",
      plotOutput("plot")
    ),
  )
)

server <- function(input, output) {
  output$plot <- renderPlot({
    ggplot(iris) +
      geom_point(aes(x = .data[[input$x_axis_input]],
                     y = .data[[input$y_axis_input]]))
  })
}

shinyApp(ui = ui, server = server)

This app would look like:

Within the navbarPage() function there is a position argument, with three options:

Argument	Description
position = "static-top"	The navigation bar is at the top of the app and when you scroll down it disappears
position = "fixed-top"	The navigation bar is at the top of the app and when you scroll down it stays in the frame for the browser window
position = "fixed-bottom"	The navigation bar is at the bottom of the app and when you scroll down it stays in the frame for the browser window

Navigation Bar Menu

Within the navigation bar, we can have a dropdown menu that gives us more options in a list. This would be accomplished using the navbarMenu() function, which also utilizes tabPanel() function that navbarPage() uses. The syntax for using a dropdown menu anvigation bar menu is:

# DO NOT RUN
navbarPage("<title_of_navigation_bar>",
  navbarMenu("<name_for_dropdown_menu>",
    tabPanel("<title_of_option_1_in_menu>",
      <content_of_option_1_in_menu>
    ),
    tabPanel("<title_of_option_2_in_menu>",
      <content_of_option_2_in_menu>
    )
  )
)

A code example of the navbarMenu() function can be seen below:

library(shiny)
library(ggplot2)
library(DT)

ui <- fluidPage(
  navbarPage("My iris dataset",
    tabPanel("Inputs",
      selectInput(inputId = "x_axis_input",
                  label = "Select x-axis",
                  choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width")),
      selectInput(inputId = "y_axis_input",
                  label = "Select y-axis",
                  choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width"))
    ),
    navbarMenu("Outputs",
      tabPanel("Plot",
        plotOutput("plot")
      ),
      tabPanel("Table",
        DTOutput("table")
      )
    )
  )
)

server <- function(input, output) {
  output$plot <- renderPlot({
    ggplot(iris) +
      geom_point(aes(x = .data[[input$x_axis_input]], y = .data[[input$y_axis_input]]))
  })
  output$table <- renderDT({
    iris[,c(input$x_axis_input, input$y_axis_input), drop = FALSE]
  })
}

shinyApp(ui = ui, server = server)

This app would look like:

Navigation List

In place of of a navigation bar along the top of the window, you can also opt for a list down the side of the app using the navlistPanel() in place of the navbarPage() function. The syntax for using this style of list looks like:

# DO NOT RUN
navlistPanel("<title_of_navigation_list>",
  tabPanel("<title_of_tab_1>",
    <content_of_tab_1>
  ),
  tabPanel("<title_of_tab_2>",
    <content_of_tab_2>
  ),
)

An example for this code is below:

library(shiny)
library(ggplot2)
library(DT)

ui <- fluidPage(
  navlistPanel("My iris dataset",
             tabPanel("Inputs",
                      selectInput(inputId = "x_axis_input",
                                  label = "Select x-axis",
                                  choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width")),
                      selectInput(inputId = "y_axis_input",
                                  label = "Select y-axis",
                                  choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width"))
             ),
             navbarMenu("Outputs",
                        tabPanel("Plot",
                                 plotOutput("plot")
                        ),
                        tabPanel("Table",
                                 DTOutput("table")
                        )
             )
  )
)

server <- function(input, output) {
  output$plot <- renderPlot({
    ggplot(iris) +
      geom_point(aes(x = .data[[input$x_axis_input]],
                     y = .data[[input$y_axis_input]]))
  })
  output$table <- renderDT({
    iris[,c(input$x_axis_input, input$y_axis_input), drop = FALSE]
  })
}

shinyApp(ui = ui, server = server)

This would create an app that looks like:

Note that the navbarMenu() function also works within navlistPanel() just like it works within navbarPage().

Creating tabs without a navigation bar

An app might require that the user can click on various tabs on a single page. While this could be accomplished with the navigation bar, this can be accomplished by providing different tabs that can easily be embedded within parts of an app using tabsetPanel(). The syntax looks like:

# DO NOT RUN
tabsetPanel(
  tabPanel(title = "<title_of_tab_1>",
    <content_of_tab_1>
  ),
  tabPanel(title = "<title_of_tab_2>",
    <content_of_tab_2>
  ),
)

We will embed this within mainPanel() function below, but it doesn’t necessarily need to be that way:

library(shiny)
library(ggplot2)
library(DT)

ui <- fluidPage(
  sidebarLayout(
    sidebarPanel(
      selectInput(inputId = "x_axis_input",
                  label = "Select x-axis",
                  choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width")),
      selectInput(inputId = "y_axis_input",
                  label = "Select y-axis",
                  choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width"))
    ),
    mainPanel(
      tabsetPanel(
        tabPanel(title = "Plot",
          plotOutput("plot")
        ),
        tabPanel(title = "Table",
          DTOutput("table")
        )
      )
    )
  )
)

server <- function(input, output) {
  output$plot <- renderPlot({
    ggplot(iris) +
      geom_point(aes(x = .data[[input$x_axis_input]],
                     y = .data[[input$y_axis_input]]))
  })
  output$table <- renderDT({
    iris[,c(input$x_axis_input, input$y_axis_input), drop = FALSE]
  })
}

shinyApp(ui = ui, server = server)

This app would look like:

Note: navbarPage() can also be embedded within mainPanel(). However, traditionally you will see navbarPage() be used to as the banner at the top of the app while tabsetPanel() will be used as different tabs within a single tab of navbarPage().

Shiny Themes

Until now we have used the default UI color scheme within Shiny. However, that is not the only option. There is a package of preset themes that app developers can choose from to make their app more visually appealing. This package is called shinythemes and it has over a {dozen different themes](https://rstudio.github.io/shinythemes/) that app developers can choose from. Implementing a theme is straightforward once you’ve loaded the shinythemes package:

ui <- fluidPage(theme = shinytheme("<name_of_shiny_theme>")
  <rest_of_the_ui>
)

We can add this to the previous app we made:

library(shiny)
library(ggplot2)
library(DT)
library(shinythemes)

ui <- fluidPage(theme = shinytheme("cerulean"),
  navbarPage("My iris dataset",
    tabPanel("Inputs",
      selectInput(inputId = "x_axis_input",
                  label = "Select x-axis",
                  choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width")),
      selectInput(inputId = "y_axis_input",
                  label = "Select y-axis",
                  choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width"))
    ),
    navbarMenu("Outputs",
      tabPanel("Plot",
        plotOutput("plot")
      ),
      tabPanel("Table",
        DTOutput("table")
      )
    )
  )
)

server <- function(input, output) {
  output$plot <- renderPlot({
    ggplot(iris) +
      geom_point(aes(x = .data[[input$x_axis_input]],
                     y = .data[[input$y_axis_input]]))
  })
  output$table <- renderDT({
    iris[,c(input$x_axis_input, input$y_axis_input), drop = FALSE]
  })
}

shinyApp(ui = ui, server = server)

This app would look like:

If you wanted to see how various themes might look on your specific app, instead of in the gallery provided by shinythemes, then you can apply them from a selection menu by adding this code to your app:

# DO NOT RUN
ui <- fluidPage(themeSelector(),
  <rest_of_the_ui>
)

Exercise 1

Lets add a layout to the R Shiny app from the exercise in the previous lesson. That app should look like:

library(shiny)
library(DT)
library(tidyverse)

# User Interface
ui <- fluidPage(
  # Upload the file
  fileInput("input_file", "Upload file"),
  # Select from the dropdown menu the column you want on the x-axis
  selectInput("x_axis_input", "Select x-axis", choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width")),
  # Select from the dropdown menu the column you want on the y-axis
  selectInput("y_axis_input", "Select y-axis", choices = c("Sepal.Length", "Sepal.Width", "Petal.Length", "Petal.Width")),
  # The output plot
  plotOutput("plot"),
  # The download plot button
  downloadButton("download_button", "Download the data .png")
)

# Server
server <- function(input, output) {
  # Reactive expression to hold the uploaded data
  iris_data <- reactive({
    req(input$input_file)
    read.csv(input$input_file$datapath)
  })
  # Reactive expression to create a scatterplot from the uploaded data and user selected axes
  iris_plot <- reactive ({
  ggplot(iris_data()) +
    geom_point(aes_string(x = input$x_axis_input, y = input$y_axis_input))
  })
  # Render the plot from the iris_plot() reactive expression
  output$plot <- renderPlot({
    iris_plot()
  })
  # Download the data
  output$download_button <- downloadHandler(
    # The placeholder name for the file will be called iris_plot.png
    filename = function() {
      "iris_plot.png"
    },
    # The content of the file will be the contents of the iris_plot() reactive expression
    content = function(file) {
      png(file)
      print(iris_plot())
      dev.off()
    }
  )
}

# Run the app
shinyApp(ui = ui, server = server)

We are going to try to create an app that looks like:

1. Place the fileInput() and selectInput()s within a sidebar with the plot in the mainPanel(). Underneath the sidepanelLayout(), place a themetic break and underneath that place a right aligned downloadButton().

2. Add the "superhero" theme from shinythemes to the app.

Hint: Be sure to add library(shinythemes) and make sure it is loaded.

---

Next Lesson >>

Back to Schedule
