Approximate time: 90 minutes

NGS pipelines

As you can see from our RNA-seq lessons so far, the analysis workflow is a multi-step process. We learned what is involved in running each individual step, and the details on inputs and outputs. Finally, we demonstrated how to combine the different steps into a single script for automation of the entire workflow from start to finish.

An alternative to creating your own pipeline for the analysis of your next-generation sequencing data, it to use an existing one. There are a number of pipelines available both commerical and academic, with some that are specific to a particular NGS experiment (i.e variant calling, RNA-seq, viral NGS analysis).

The pipeline we will be presenting here is bcbio-nextgen.

bcbio-nextgen

bcbio-nextgen is a shared community resource for handling the data processing of various NGS experiments including variant calling, mRNA-seq, small RNA-seq and ChIP-seq. It is an open-source toolkit with a lot of support (testing, bug reports etc.) and development from the large user community.

“A piece of of software is being sustained if people are using it, fixing it, and improving it rather than replacing it” -Software Carpentry

bcbio-nextgen provides best-practice piplelines with the goal of being:

It is available for installation on most Linux systems (compute clusters), and also has instructions for setup on the Cloud. It is currently installed on on the O2 cluster, and so we will demonstrate bcbio-nextgen for RNA-seq data using our Mov10 dataset as input.

NOTE: There is also a simplified version of how to use bcbio for RNA-Seq analysis put together by the Sorger lab, as the readthedocs can be sometimes be overwhelming with much more detail than you need to get started.

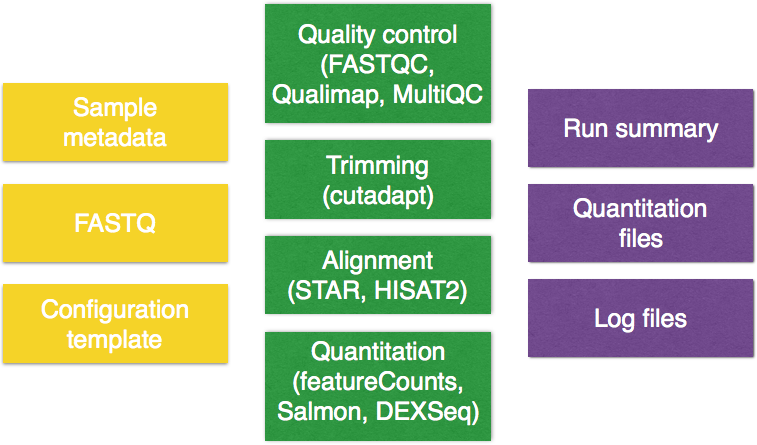

The figure below describes the input (yellow), the workflow for RNA-seq (green) and output (purple) components of bcbio:

bcbio

As we work through this lesson we will introduce each component in more detail.

Setting up

Let’s get started by logging on to O2 and starting an interactive session:

$ srun --pty -p interactive -t 0-12:00 --mem 8G --reservation=HBC /bin/bash

The first thing we need to do in order to run bcbio, is setup some environment variables. Rather than just modifying them in the command-line, we will be adding it to our .bashrc file which is located in your home directory. The .bashrc is a shell script that Bash runs whenever it is started interactively. You can put any command in that file that you could type at the command prompt, and is generally used to set an environment and customize things to your preferences.

Open up your .bashrc using vim and add in the following:

# Environment variables for running bcbio -- YOU MAY ALREADY HAVE THIS
export PATH=/n/app/bcbio/tools/bin:$PATH

NOTE: For people who are using non-english keyboards, you may also want to add the following to your .bashrc file:

export LC_ALL=en_US.UTF-8
export LANG=en_US.UTF-8
export LANGUAGE=en_US.UTF-8

Close and save the file.

/n/scratch2

Finally, let’s set up the project structure. Since bcbio will spawn a number of intermediate files as it goes through the pipeline of tools, we will use /n/scratch2 space to make sure there is enough disk space to hold all of those files. Your home directory on O2 will not be able to handle this amount of data, as your quota is 100GB. The /n/scratch2/ space allows 10TB of space per user and it is ideal for running large scale workflows. Keep in mind that this is a temporary space and files will be purged in 30 days. Another alternative is talking to the folks at HMS-RC to set up a directory in the /n/groups folder for your lab.

Change directories into /n/scratch2 and make a directory titled your O2 username (i.e. mm573). Since this is a shared space it is useful to make your own personal directory:

$ cd /n/scratch2
$ mkdir <ecommmons_id>

Now let’s create a directory for the bcbio run:

$ cd <ecommons_id>
$ mkdir bcbio-rnaseq

bcbio: Inputs

There are three things required as input for your bcbio run:

bcbio-input

The files we will use as input are the raw untrimmed FASTQ files. We will need to copy the full dataset over from the hbctraining directory and into our current directory:

$ cp /n/groups/hbctraining/ngs-data-analysis2016/rnaseq/bcbio-rnaseq/*.fq bcbio-rnaseq/

NOTE: These are the same FASTQ files we used previously but we have named them differently. You will notice that we have removed the underscores between the sample name and the replicate number. This is because bcbio identifies samples that have _1 or _2 before the .fastq extension to be paired-end samples, and will analyze them that way.

In addition to the data files, bcbio requires a comma separated value file containing sample metadata. The first column must contain the header samplename which corresponds to the FASTQ filenames you are running the analysis on. You can add a description column to change the sample name originally supplied by the file name, to this value (i.e. a short name). And finally, any columns that follow can contain additional information on each sample.

We have created this file for you, you will need to copy it over to your current directory.

$ cp /n/groups/hbctraining/ngs-data-analysis2016/rnaseq/bcbio-rnaseq/mov10_project.csv bcbio-rnaseq/

Each line in the file corresponds to a sample, and each column has information about the samples. Move into the directory and take a look at the file:

$ cd bcbio-rnaseq
$ less mov10_project.csv

samplename,description,condition
Irrel_kd1.subset.fq,Irrel_kd1,control
Irrel_kd2.subset.fq,Irrel_kd2,control
Irrel_kd3.subset.fq,Irrel_kd3,control
Mov10_oe1.subset.fq,Mov10_oe1,overexpression
Mov10_oe2.subset.fq,Mov10_oe2,overexpression
Mov10_oe3.subset.fq,Mov10_oe3,overexpression

The final requirement is a configuration template, which will contain details on the analysis options. The template file is used in combination with the metadata file, and the FASTQ files to create a config file which is ultimately the input for bcbio.

You can start with one of the provided best-practice templates and modify it as required, or you can create your own. We have created a template for you based on the experimental details. Copy it over and then use less to take a look at what is inside.

$ cp /n/groups/hbctraining/ngs-data-analysis2016/rnaseq/bcbio-rnaseq/mov10-template.yaml .
$ less mov10-template.yaml

# Template for human RNA-seq using Illumina prepared samples
---
details:
  - analysis: RNA-seq
    genome_build: hg38
    algorithm:
      aligner: star
      quality_format: standard
      trim_reads: False
      strandedness: firststrand
upload:
  dir: ../final

You should observe indentation which is characteristic of the YAML file format (YAML Ain’t Markup Language). YAML is a human friendly data serialization standard for all programming languages. It takes concepts from languages such as C, Perl, and Python and ideas from XML. The data structure hierarchy is maintained by outline indentation.

The configuration template defines details of each sample to process, each described below:

At the end of the template we define upload which is for the final ouput from bcbio. To find out more on the details that can be added to your YAML, check out the readthedocs.

We can now apply this template to all samples in our dataset. To do this we use the template workflow (-w), which takes in the template YAML, the metadata and the samples and outputs a configuration file.

$ bcbio_nextgen.py -w template mov10-template.yaml mov10_project.csv *.fq

Upon completion of the command you should see the following output:

Configuration file created at: /n/scratch2/mm573/bcbio-rnaseq/mov10_project/config/mov10_project.yaml
Edit to finalize and run with:
  cd /n/scratch2/mm573/bcbio-rnaseq/mov10_project/work
  bcbio_nextgen.py ../config/mov10_project.yaml

If you take a look in your current directory, you will also find that a new directory has been created by the same name as your csv file mov10_project. Inside that directory you will find the following directory structure:

mov10_project/
├── config
└── work

bcbio: Workflow

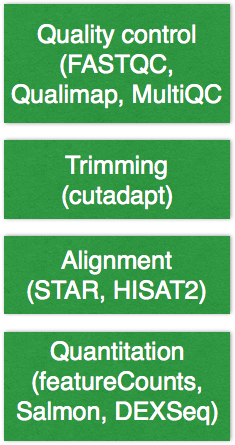

Before we actually run the analysis, let’s talk a bit about the tools that will be run and some of the algorithm details we specified for these tools. The RNA-seq pipeline includes steps for quality control, adapter trimming, alignment, and post-alignment quantitation at the level of the gene and isoform.

bcbio-workflow

In our configuration, we specified the following:

    algorithm:
      aligner: star
      quality_format: standard
      trim_reads: False
      strandedness: firststrand

Creating a job script to run bcbio

Upon creation of the config file, you will have noticed two directories were created. The work directory is created because that is where bcbio expects you to run the job.

Let’s move into this directory:

$ cd mov10_project/work

bcbio pipeline runs in parallel using the IPython parallel framework. This allows scaling beyond the cores available on a single machine, and requires multiple machines with a shared filesystem like standard cluster environments. bcbio is essentially creating its own mini-scheduler system with a single controller process that optimizes jobs on the worker nodes such that the job gets finished as fast and efficient as possible. Although, we will only ask for a single core in our job submission script bcbio will use the parameters provided in the command to spin up the appropriate number of cores required at each stage of the pipeline.

To run bcbio we call the same python script that we used for creating the config file bcbio_nextgen.py but we add different parameters:

The job can take on the range of hours to days depending on the size of your dataset, and so rather than running interactively we will create a job submission script.

Open up a script file using vim and create your job script:

$ vim submit_bcbio.sbatch

#!/bin/sh

#SBATCH -p priority
#SBATCH --job-name bcbio_mov10
#SBATCH -c 1
#SBATCH -t 0-3:00
#SBATCH --mem 10G
#SBATCH -e mov10_project.err
#SBATCH -o mov10_project.out

bcbio_nextgen.py ../config/mov10_project.yaml -n 12 -t ipython -s slurm -q medium -r t=0-100:00  --timeout 300 --retries 3

Once you are done, save and close. From within the work directory you can now submit the job:

$ sbatch submit_bcbio.sbatch

Use sacct to see the status of your job. How many jobs do you see?

bcbio: Output

bcbio-ouput

Run summary

The results of the run will be summarized for you in a new directory called final as specified in our config file. The directory will be located in your project directory:

mov10_project/
├── config
├── work
└── final

Your results may not have populated so take a look in our most recent final:

$ ls -l /n/scratch2/mm573/bcbio-rnaseq/mov10_project/final

There is a date-stamped folder in addition to several folders corresponding to each sample that was run.

total 28
drwxrwxr-x. 4 mm573 mm573 4096 Sep 25 14:54 2018-09-25_mov10_project
drwxrwxr-x. 4 mm573 mm573 4096 Sep 25 14:54 Irrel_kd1
drwxrwxr-x. 4 mm573 mm573 4096 Sep 25 14:54 Irrel_kd2
drwxrwxr-x. 4 mm573 mm573 4096 Sep 25 14:54 Irrel_kd3
drwxrwxr-x. 4 mm573 mm573 4096 Sep 25 14:54 Mov10_oe1
drwxrwxr-x. 4 mm573 mm573 4096 Sep 25 14:54 Mov10_oe2
drwxrwxr-x. 4 mm573 mm573 4096 Sep 25 14:54 Mov10_oe3

Sample-specific files

Inside each of the sample directories we have results pertaining to each sample. Take a look at Irrel_kd1:

$ ls -l /n/scratch2/mm573/bcbio-rnaseq/mov10_project/final/Irrel_kd1

Here you will find the sorted BAM files along with an index. The transcriptome.bam file is generated from STAR, but is not something you are likely to use/need. There is also a folder containing all of the qc results organized into sub-directories corresponding to the tool that was run (i.e. Qualimap, FASTQC, samtools). The salmon folder is the output from a Salmon run, as we had done in class.

Aggregated results

Inside the date-stamped directory you will also find a number of different files that have aggregated information across all samples in your dataset.

$ ls -l /n/scratch2/mm573/bcbio-rnaseq-06-21-2017/mov10_project/final/2017-06-21_mov10_project/

The next set of files correspond expression matrices for your dataset generated using the different quantification methods that were applied in the workflow. For RNA-seq these files are listed below and also detailed in the readthedocs:

Using bcbio output to run DESeq2 or sleuth

Log files

In the final folder there are also two log files:

  1. bcbio-nextgen.log: High level logging information about the analysis. This provides an overview of major processing steps and useful checkpoints for assessing run times.
  2. bcbio-nextgen-commands.log: Full command lines (including all parameters) for all third party software tools run.

There is one more log file located in the work folder. Here, you will find that there are many new directories and files. For each step of pipeline, new job submission scripts were generated as were various intermediate files and directories. Since the important files were collated and placed in the final directory, the only other important directory is the logs directory. The last log file is bcbio-nextgen-debug.log. It contains detailed information about processes including stdout/stderr from third party software and error traces for failures. Look here to identify the status of running pipelines or to debug errors. It labels each line with the hostname of the machine it ran on to ease debugging in distributed cluster environments.

This lesson has been developed by members of the teaching team at the Harvard Chan Bioinformatics Core (HBC). These are open access materials distributed under the terms of the Creative Commons Attribution license (CC BY 4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
