Learning Objectives

Making your research reproducible

We have already made a case about reproducibility in the introduction to this workshop. In this lesson we will focus on one of the tools to enable and empower you to perform an analysis reproducibly.

When you do lab work, you use lab notebooks to organize your methods, results and conclusions for future retrieval and reproduction. The information in these notebooks is converted into a more concise experimental description for the Methods section when publishing the results. Computational analysis requires the same diligence! The equivalent of a lab notebook for computational work is a detailed log of the workflow used, the tools at each step, the parameters for those tools and last, but not least, the versions of the tools.

Image source: “Reproducible Research in Computational Science”, Peng 2011

Quarto

Creating the “gold standard” code is not always easy depending on what programming language you are using. For analyses within R, RStudio helps facilitate reproducible research with the use of R scripts, which document all code used to perform a particular analysis. However, we often don’t save the version of the tools we use in a script, nor do we include or interpret the results of the analyses within the script.

In the first part of this workshop we will be learning about Quarto. Quarto is the successor to RMarkdown and much of the syntax in Quarto is similar to the RMarkdown syntax. Quarto is a file format in its most basic form, that can eventually be converted into a shareable document, e.g HTML, PDF and many others. It allows you to document not just your R (and Python) code, but also enables the inclusion of tables, figures, along with descriptive text. Thus resulting in a final document that has the methods, the code and interpretation of results all in a single document!

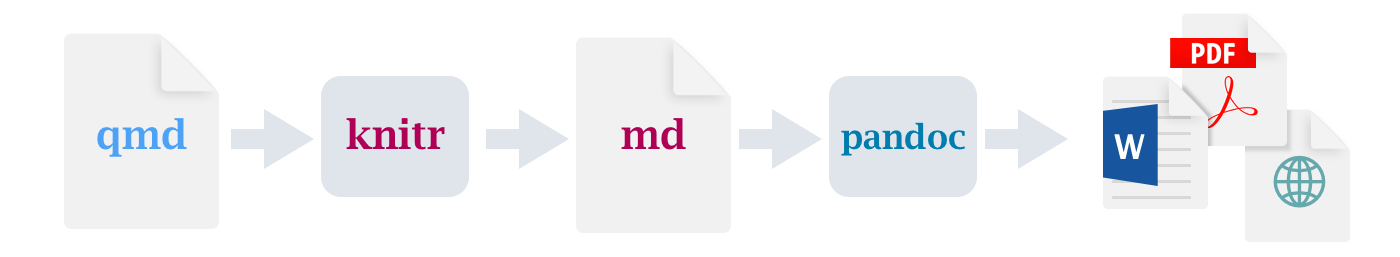

To elaborate, you write a file using the Markdown language and within it embed executable R code chunks. The code chunks are paired with Quarto syntax, so that once your document is complete, you can easily convert it into one of several common formats (i.e. HTML, PDF, PPT) for sharing or documentation.

Image source: Quarto Documentation

Wait, what?

Did most of that last paragraph and the workflow image seem like they were written in a foreign language? Don’t worry, the goal of this lesson is to cover each of those concepts in much more detail! By the end of the lesson, you can come back to that paragraph and the workflow image above and will know exactly what it means.

Ready to get started?

Exercise #1: Render a Quarto Markdown file to generate an HTML document

Before we delve into the details, we will start with an activity to show you what a Quarto Markdown file (.qmd extension) looks like, and how to generate the resulting HTML report. HTML format is a common format output from rendering Quarto Markdown documents and is the default file format interpreted by web browsers. HTML is oftentimes the format that websites are written in.

  1. Open up RStudio and create a new project in a new directory called quarto_workshop. Remember the location in computer where you create this project.
  2. Right click this Quarto (.qmd) file. Download it (using Save Link As) and place it within the quarto_workshop project directory.
  3. Download and uncompress this data folder within the quarto_workshop project directory.
  4. Open the .qmd file in RStudio.

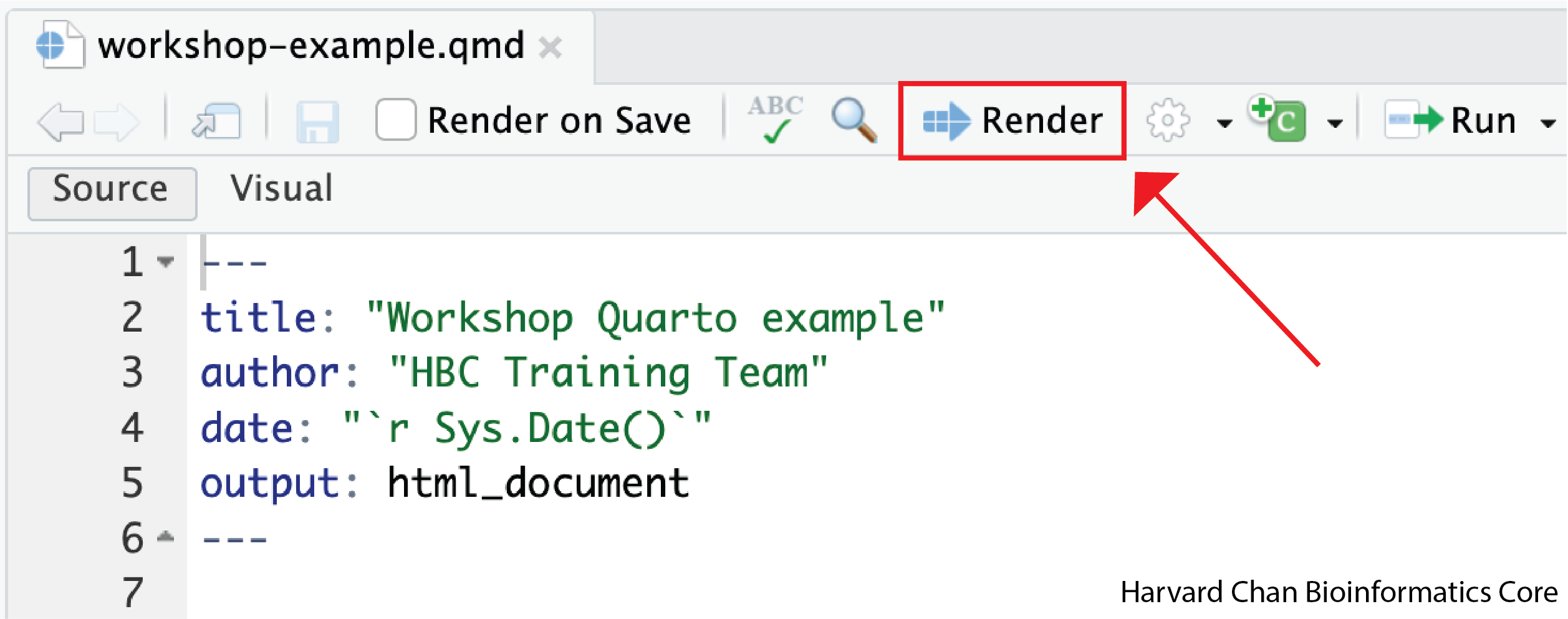

  5. Render the markdown by clicking on the Render button located at the top of your script editor pane.

In the console, you will see a flurry of text scrolling by. The text indicates progress while each code chunk is being executed. Once the document is finished rendering, a new window will be automatically opening up with the HTML report that was just generated.

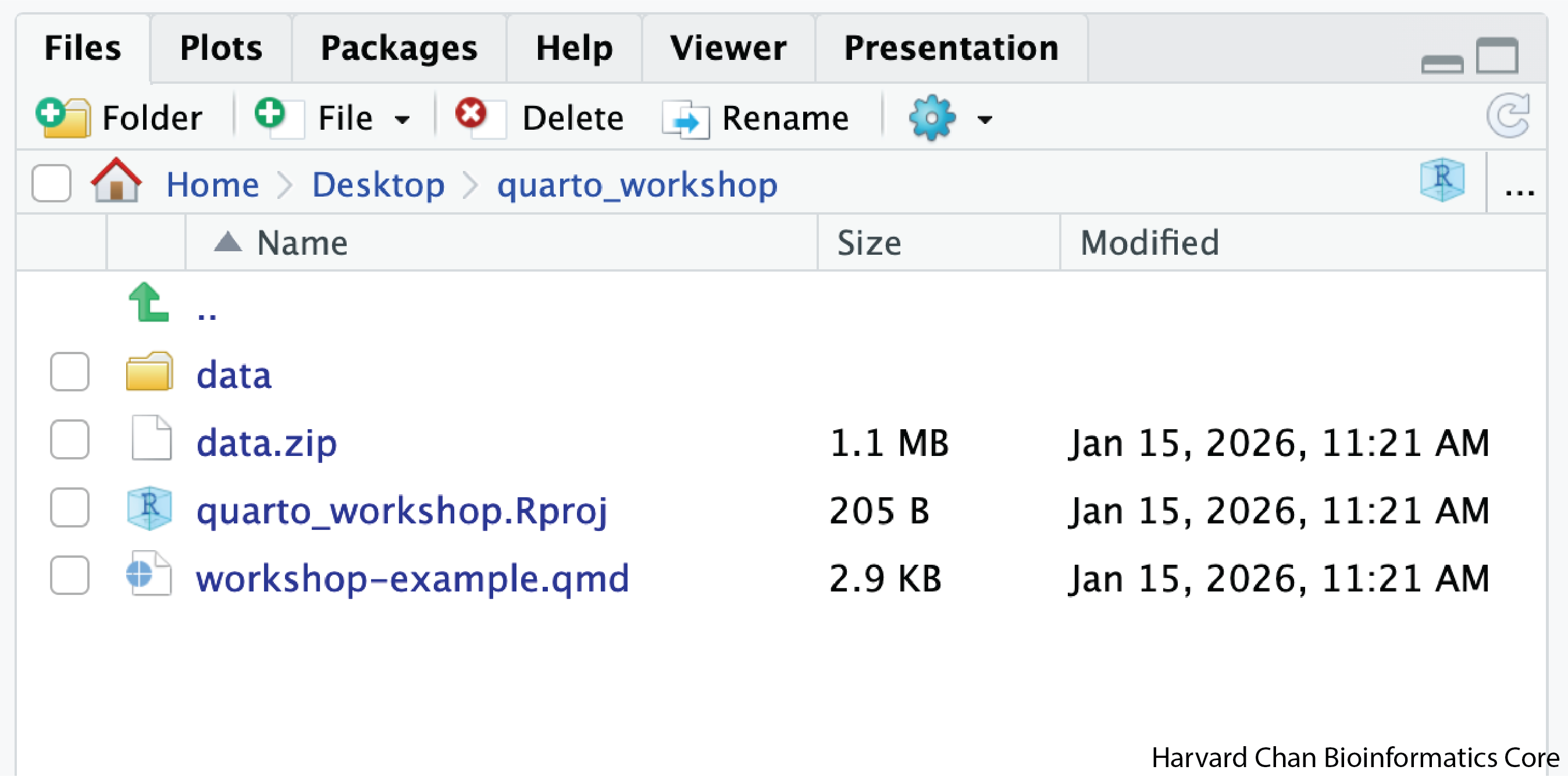

NOTE: If you run into an error when rendering the markdown, make sure the directory structure of the quarto_workshop project is set properly as shown below:

Quarto basics

Markdown is a lightweight markup language with plain-text-formatting syntax. It is often used for formatting README files, writing messages in online discussion forums and creating rich text documents using a plain text editor. The Markdown language has been adopted by many different coding groups and some have added their own “flavors”. RStudio originally implemented an “R-flavored markdown”, or “RMarkdown”, which has really nice features for text and code formatting. This has evolved over time and has been updated to be “Quarto Markdown”.

The RStudio cheatsheet for Quarto is quite daunting, but includes more advanced Quarto options that may be helpful as you become familiar with report generation.

Components of a .qmd file

Let’s take a closer look at the “raw” workshop-example.qmd file and understand the components therein.

1. A file header in YAML format

---
title: "Workshop Quarto example"
author: "HBC Training Team"
date: "`r Sys.Date()`"
output: html_document
---

This section has information listed in YAML format, and is usually used to specify metadata (title, author) and basic configuration information (output format) associated with the file. You can find detailed information about specifications that can be made in this section on this webpage.

2. Descriptive text

## Project details
In this example report we are using a *toy dataset* to determine the impact of age, genotype and cell type on the average gene expression in mice. This toy study has 12 mice from **2 genotypes** (KO and Wt) and **2 cell types** (typeA and typeB).

## Setup

### Load Libraries

The syntax for formatting the text portion of the report is relatively easy. You can easily get text that is bolded, italicized, bolded & italicized. You can create “headers” and “sub-headers” to organize the information by placing an “#” or “##” and so on in front of a line of text, generate numbered and bulleted lists, add hyperlinks to words or phrases, and so on.

Let’s take a look at the syntax of how to do this in Quarto:

Note: While the header says RMarkdown, the syntax for formatting text in Quarto is that same.

You can also get more information about Quarto formatting here.

Fun fact! These lessons, and the schedule page were created using basic Markdown format (not R Markdown). Here’s an example:

3. Code chunks

The basic idea behind Quarto is that you can describe your analysis workflow and provide interpretation of results in plain text, while interspersing chunks of R code within that document to tell a complete story using a single document. Code chunks in Quarto are delimited with a special marker (```). Backticks (`) commonly indicate a chunk of code. This syntax is also used for formatting text on GitHub.

```{r}
#| label: load_libraries
# Bioconductor and CRAN libraries used
library(knitr)
library(ggplot2)
```

While not required, each individual code chunk should be given a unique label. The code chunk name goes after the #| label: code block option. The label should be something meaningful and we recommend using snake_case for the names whenever possible. There are more code block options besides label that we will discuss in the next lesson.

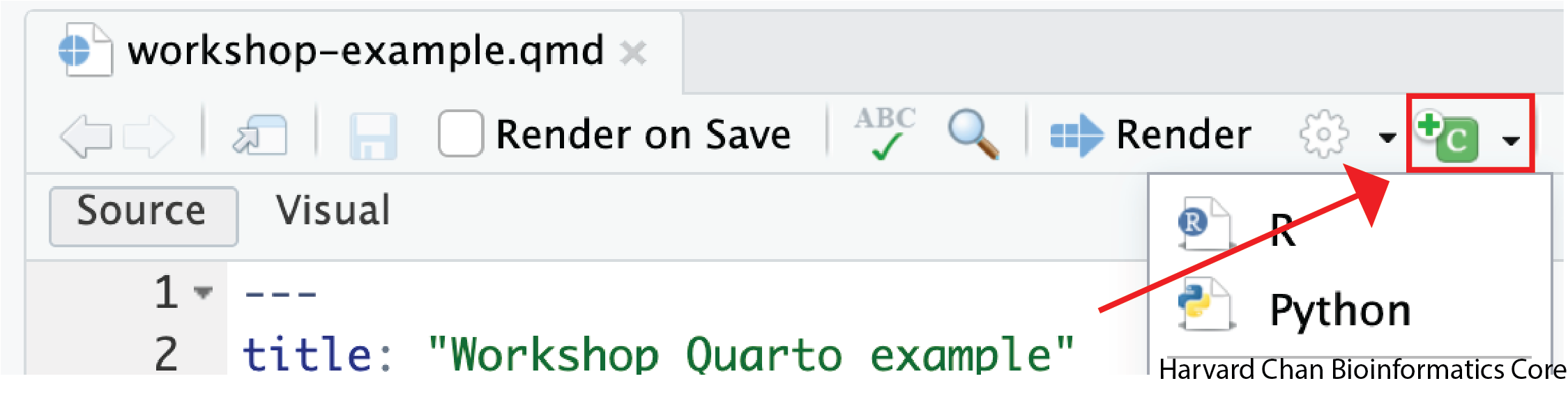

There is a handy Insert button within RStudio that allows you to insert an empty R chunk in your document without having to type the backticks yourself.

Alternatively, there are keyboard shortcuts available as well.

Finally, you can write inline R code enclosed by single backticks (`) containing a lowercase r. This allows for variable returns outside of code chunks and is extremely useful for making report text more dynamic. For example, you can print the current date inline within the report with this syntax: `r Sys.Date()`. See how we implement this in the YAML header.

For the final code chunk in your analysis, it is recommended to run the sessionInfo() function. This function will output the R version and the versions of all libraries loaded in the R environment. Documenting the versions of the tools you used is important for reproduction of your analysis in the future.

Generating the report

Once we have finished creating an Quarto Markdown file, we finally need to render the report. You can render the files by using the quarto_render() function, or by just clicking on “Render” in the panel above the script as we had done in our first activity in this lesson.

Note: When creating your own reports, you will very likely find yourself rendering the report periodically as you work through rather than just once at the end. It is an iterative process usually since you may have to turn off warnings, or if you decide you need a figure to be larger/smaller, or updating the descriptive text in the document to be informative (for others and your future self).

When you click on the “Render” button, by default an HTML report will be generated. If you would prefer a different document format, this can be specified in the YAML header with the output: parameter as discussed above.

Exercise #2: Make additions to the qmd file for a more complete report!

  1. Scroll down to the end of the workshop-example.qmd document. Add a new code chunk. Within the code chunk place the code sessionInfo().
  2. Add a new section header above the newly created code chunk. Use a title that best describes the output. Have this header be the same size as the “Project details” header.
  3. Modify the author and title parameters at the top of the script to have your name and your chosen title
  4. Render the markdown.

Answer Key
